MN25408A

Precision USB SmartCal (4 Port)

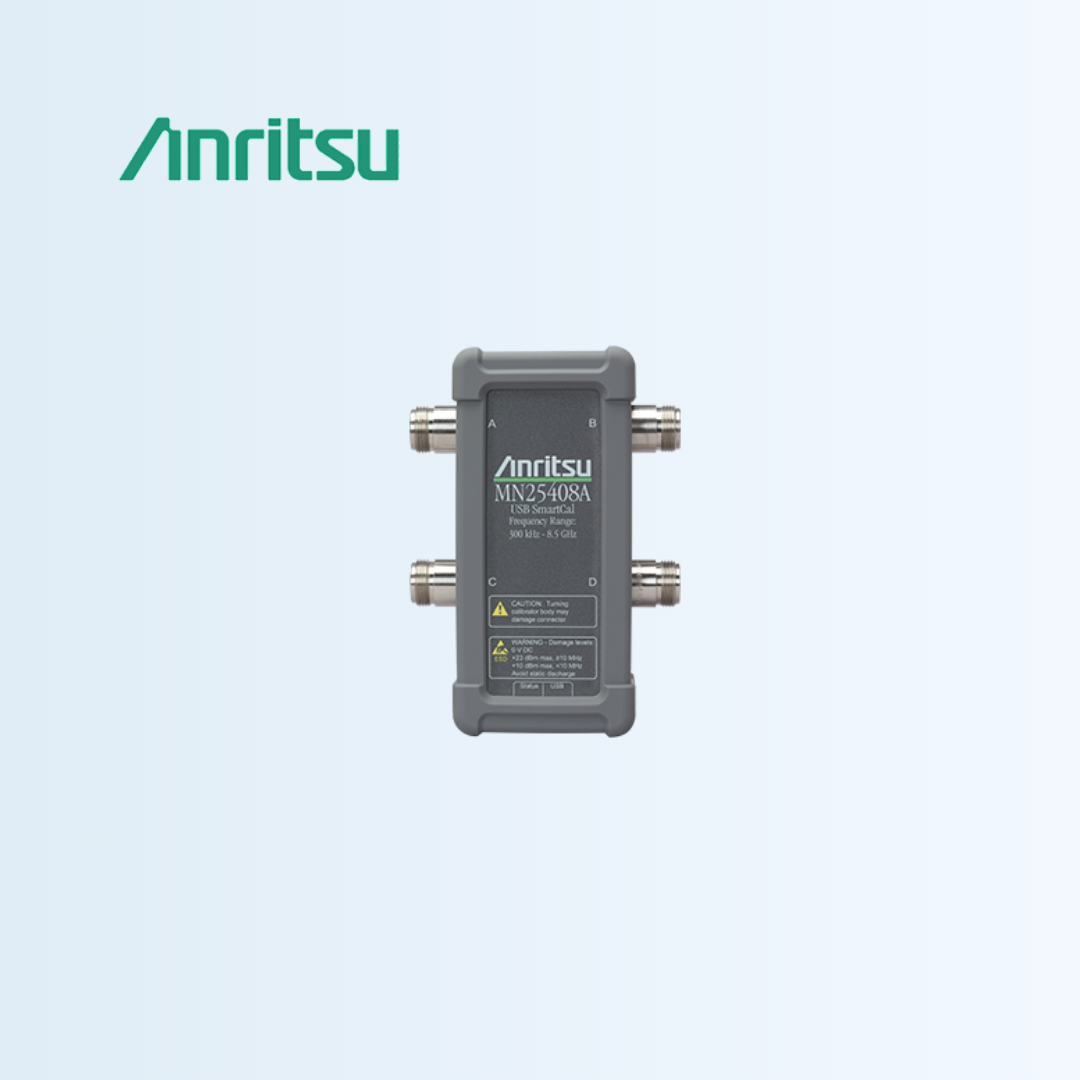

The SmartCal MN25408A is a 4-port auto calibration unit covering a frequency range from 300 kHz to 8.5 GHz. The MN25208A currently offers 3 connector options: N(f)-N(f), K(f)-K(f), 3.5 mm(f) - 3.5 mm(f). The MN25408A delivers automatic, fast and error-free calibrations for any ShockLine VNA. The SmartCal automatically powers on via an USB connection and loads calibration kit coefficients from on-board memory into the ShockLine software. The SmartCal is ready to use immediately after detection by the VNA because it doesn't require warm-up.

Auto load of calibration kit coefficients - Speeds up setup and reduces calibration error
Auto sense – Prevents bad calibrations due to incorrect or poor connections
VNA to SmartCal port mapping – Increases flexibility and simplifies multiport calibrations
ShockLine software auto detects SmartCal – Simple, easy to use calibration software
No internal heater – No wait calibration
USB powered and controlled – Convenient one plug interface
Single connection calibrations – Reduces wear and tear on connectors and cables
Supports all ShockLine VNAs – 1, 2, and 4-port calibrations available
SCPI command set – Easy integration into automated test environments
Low cost – Automatic and fast calibrations at a low price
Small size – Convenient size provides easier use when moving between VNAs

Model: MN25408A
Frequency Range: 300 kHz to 8.5 GHz
Connector Options: N(f)-N(f), K(f)-K(f), or 3.5 mm(f)-3.5 mm(f)
Power Source: USB-powered—no external power supply needed
Port Mapping: Automatic port mapping to simplify multiport calibrations
Auto Detection: Automatically detected by ShockLine software upon connection
Calibration Kit Support: Auto loads calibration kit coefficients to reduce setup time and minimize errors
Port Auto-Sense: Ensures correct connections to prevent calibration failures
