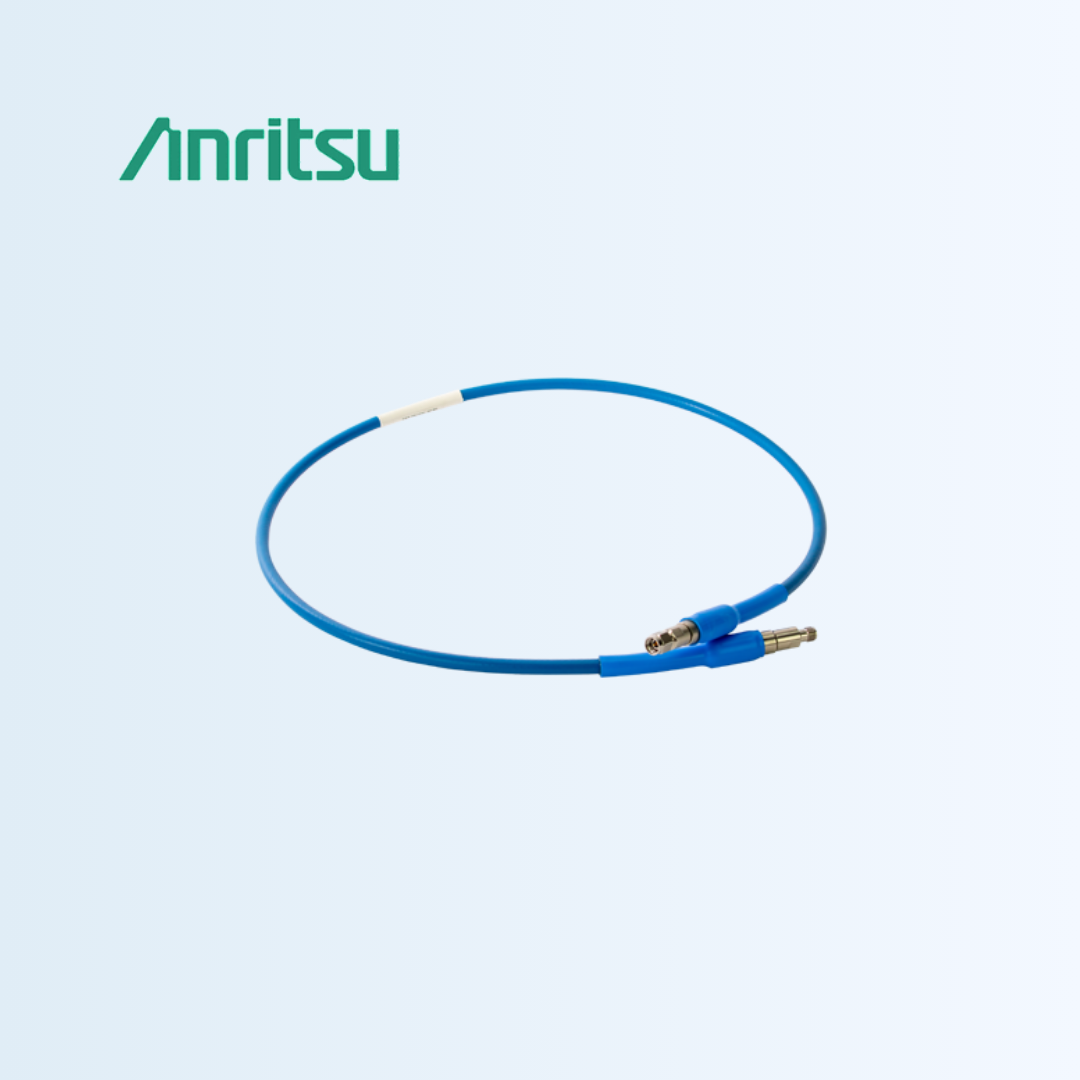

806-206-R

Flexible Phase Stable Cable

The 806-206-R is a flexible, RoHS compliant cable with V(m) to V(f) connector interfaces, frequency bandwidth of DC to 70 GHz, and length of 24 inches (61 cm).

14 dB (minimum) return loss
4.75 dB up to 70 GHz max insertion loss
< -90 dB shielding effectiveness
Great stability under flexure and vibration

Model: 806-206-R
Cable Type: Flexible, ultra-low loss, RoHS-compliant coaxial cable
Connector Configuration: V(male) to V(female)
Length: 24 inches (61 cm)
Impedance: 50 Ω
Frequency Range: DC to 70 GHz
Return Loss: Minimum 14 dB up to 70 GHz
Insertion Loss: Maximum 4.75 dB at 70 GHz
