806-304-R

806-304-R

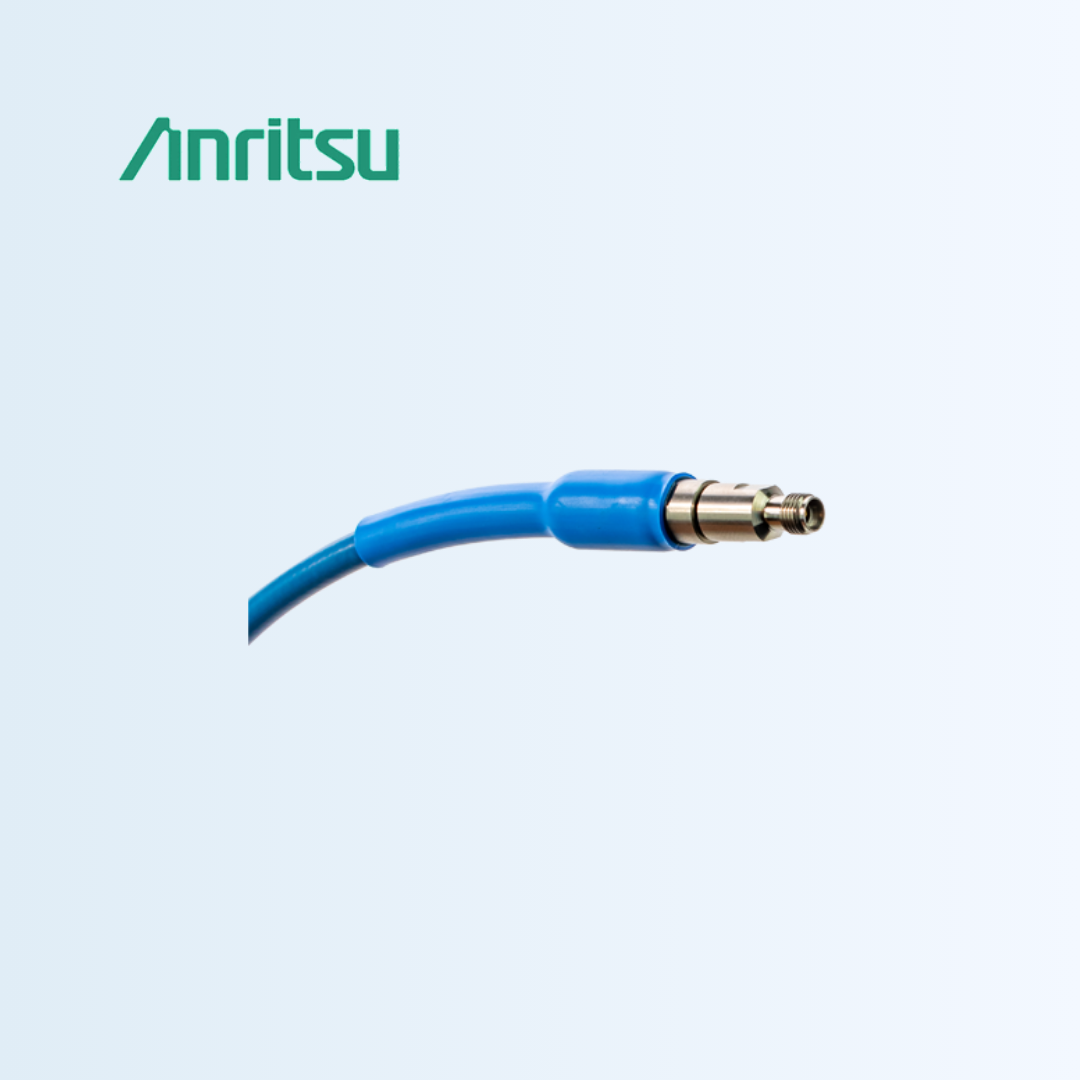

Flexible Phase Stable Cable

The 806-304-R is a flexible, RoHS compliant cable with K(m) to K(f) connector interfaces, frequency bandwidth of DC to 40 GHz, and length of 36 inches (91.5 cm). The 806-304-R is an ultra low loss cable assembly designed for rugged and outdoor applications. This test port cable was formerly ordered as special part number SC8267.

  • 16 dB (minimum) return loss
  • 4.15 dB up to 40 GHz max insertion loss
  • > 90 dB shielding effectiveness
  • Great stability under flexure and vibration
  • Model: 806-304-R
  • Cable Type: Flexible, ultra-low loss, RoHS-compliant coaxial cable
  • Connector Configuration: K(male) to K(female)
  • Length: 36 inches (91.5 cm)
  • Impedance: 50 Ω
  • Frequency Range: DC to 40 GHz
  • Return Loss: Minimum 16 dB up to 40 GHz
  • Insertion Loss: Maximum 4.15 dB at 40 GHz
  • Shielding Effectiveness: Greater than 90 dB
