806-42x-R

Flexible Phase Stable Cables

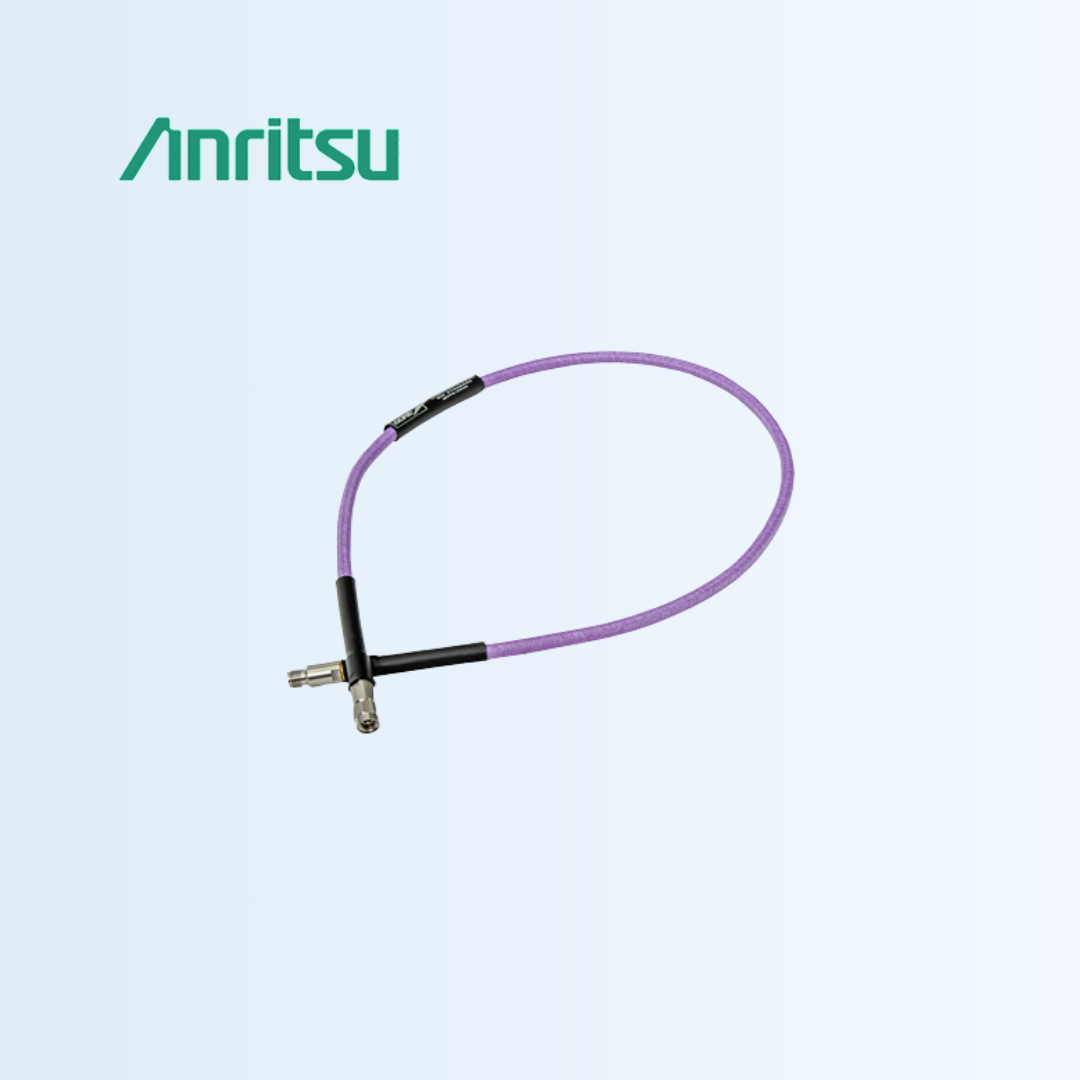

The 806-42x-R series of Flexible Phase Stable Cables are flexible, RoHS compliant cables. These cables complement the 43.5 GHz ShockLine VNAs as well as the rest of the Anritsu Extended-K™ components and accessories. The cables come in a 2 foot and 1 meter lengths in both K(f) to K(f) and K(m) to K(f) connector combinations.

15.57 dB (minimum) return loss up to 43.5 GHz
Guaranteed Insertion loss at 43.5 GHz
2.85 dB (2 foot length)
4.29 dB (1 meter length)
>90 dB shielding effectiveness
Great stability under flexure and vibration

Model Series: 806-42x-R
Cable Type: Flexible, phase-stable RF cables
Connector Types: K(f)-to-K(f) and K(m)-to-K(f)
Available Lengths: 24 inches (61 cm) and 1 meter (39.4 in)
Impedance: 50 Ω
Frequency Range: DC to 43.5 GHz
Return Loss: Minimum 15.57 dB up to 43.5 GHz
Insertion Loss: 2.85 dB (24-inch cable) and 4.29 dB (1-meter cable) at 43.5 GHz
Shielding Effectiveness: Over 90 dB
Compliance: RoHS compliant
