2000-2183-R

2000-2183-R

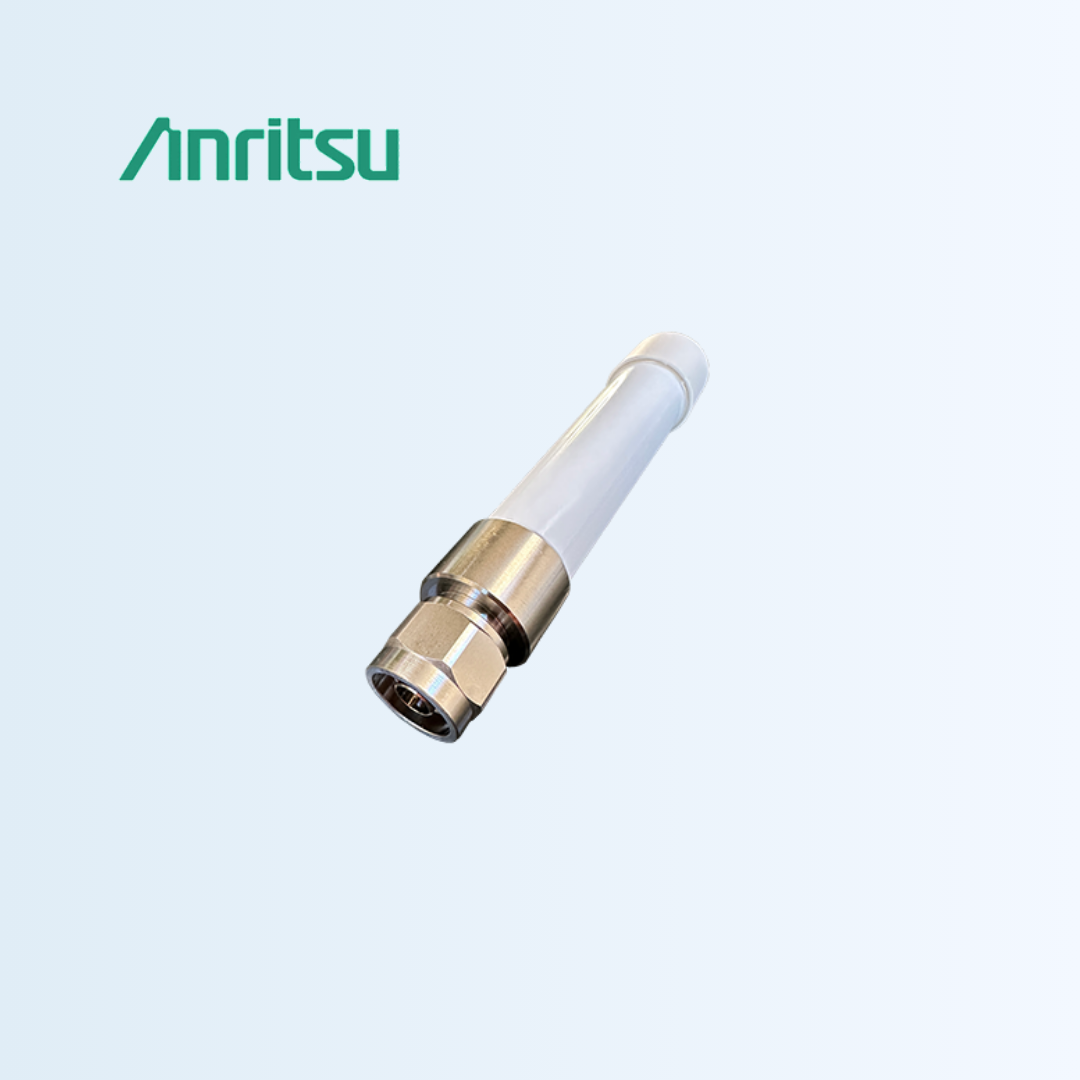

Multiband Dipole Antenna

Multiband dipole omni directional antenna covering all the common cellular bands in a single antenna. Ideal for general purpose use with handheld spectrum analyzers in the field. Covering legacy GSM frequency bands and all common LTE frequencies as well as 5G FR1 frequencies including the C-Band.

  • 617 MHz to 5 GHz frequency range covers all common cellular bands in a single antenna
  • Multiband dipole design for over the air detection of signals for all directions
  • N(m) connector interfaces directly to spectrum analyzer RF port
  • IP67 rated for field use in all weathers
  • Small form factor, 13 cm long, for transport and use
  • Model: 2000‑2183‑R
  • Antenna Type: Multiband dipole, omnidirectional antenna
  • Frequency Coverage: From 617 MHz all the way up to 5 GHz — encompassing legacy GSM bands, all common LTE frequencies, and 5G FR1 bands including C‑Band
  • Connector: N-type male (N(m)), designed to connect directly to a spectrum analyzer RF input
  • Weather Resistance: Rated IP67, making it dust-tight and highly water-resistant — ideal for all-weather field operations
  • Size: Compact form factor; approximately 13 cm in total length, highly portable
  • Primary Applications: Tailored for over-the-air detection of cellular signals from any direction — perfect for handheld field spectrum analyzers used in LTE and 5G testing environments
