2000-1800-R

2000-1800-R

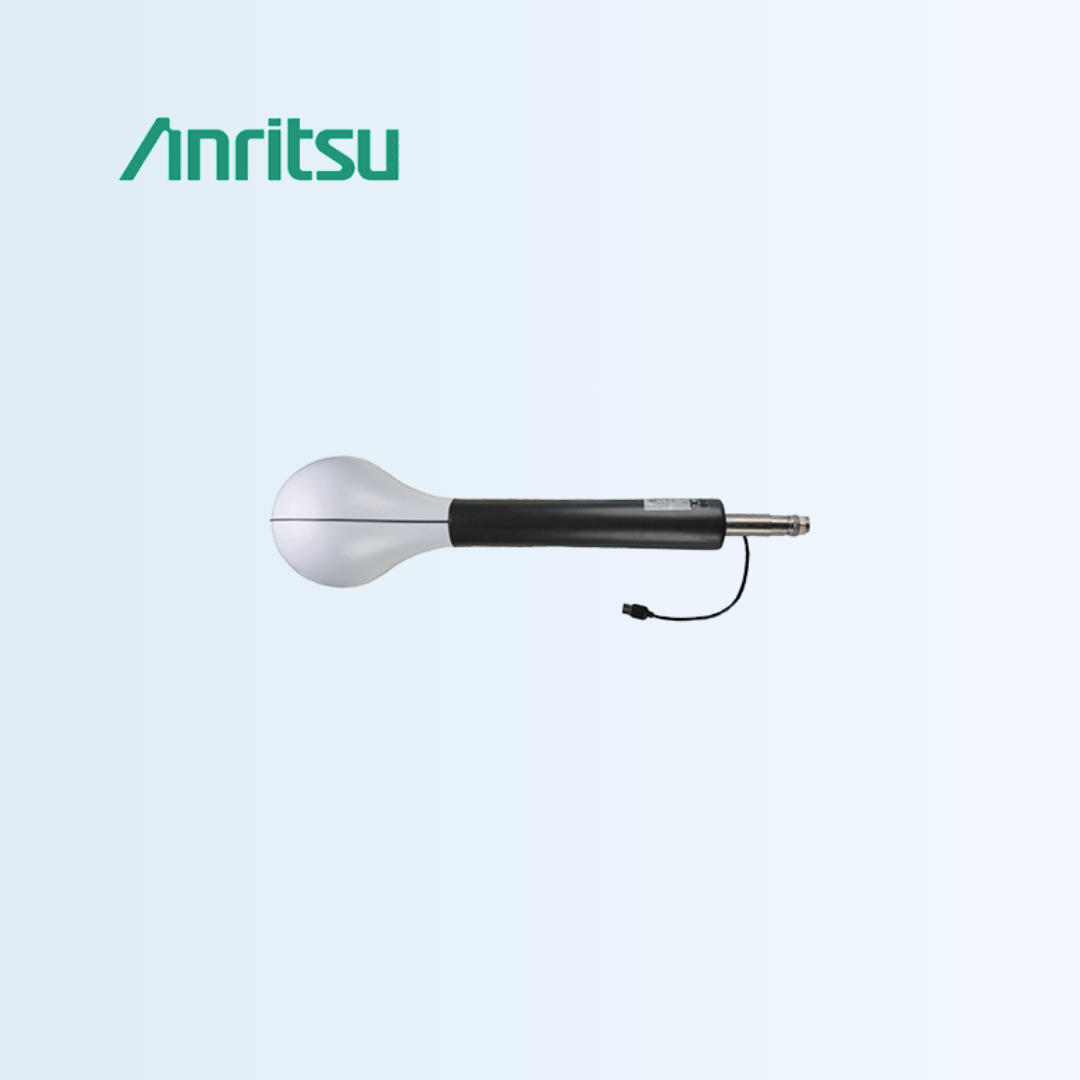

Isotropic Antenna

In order to conduct EMF measurements, an Anritsu isotropic antenna is required. Anritsu offers the 2000-1800-R isotropic antenna for use with the Electromagnetic Field Measurement System. The 2000-1800-R operates over a frequency range of 9 kHz to 300 MHz. This antenna is a tri-axis H-Field sensor with an integrated RF switch device, microcontroller, and memory. Each of the three sensors is situated orthogonally inside the antenna housing to transmit and receive a spherical radiation pattern. In this way, all radiation at the antenna’s geographical position is measured, regardless of direction of arrival.

  • The 2000-1800-R isotropic antenna is a tri-axis H-Field sensor with an integrated RF switch. The RF switch is controlled by the analyzer via a USB port. Each antenna is individually characterized and comes with a certificate of conformance and supporting test data. Integrated solution for Electromagnetic Field Strength measurements for health and safety
  • Wide dynamic range
  • Fast switching time
  • Automatic download of antenna factors
  • Various demodulation options available
  • Type: H-Field sensor
  • Sensor Type: Three Axis sensor with scanned axes
  • Frequency Range: 9 kHz — 300 MHz
  • 1 dB Compression Point at Output: 118 dbμV Typical
  • Decoupling of the axis: >20 dB typical
  • VSWR: < 1.5 (20 KHz — 50 MHz) typical
  • RF Connector: N-Connector Male, 50 Ω
  • Supply and Control: USB
