2000-1791-R

2000-1791-R

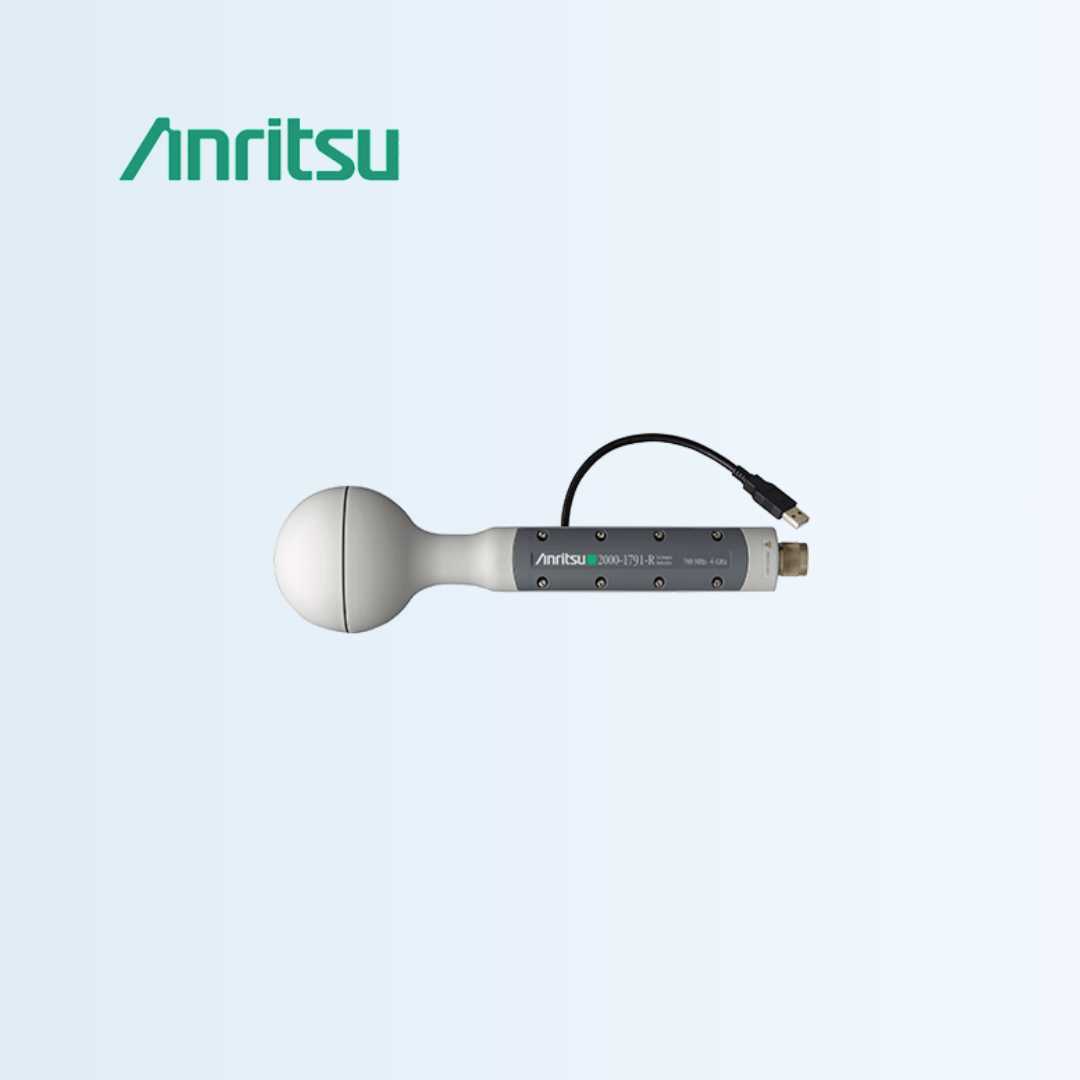

Isotropic Antenna

In order to conduct EMF measurements, an Anritsu isotropic antenna is required. Anritsu offers the 2000-1791-R isotropic antenna for use with the Electromagnetic Field Measurement System. The 2000-1791-R operates over a frequency range of 0.7 GHz to 6 GHz. This antenna is a tri-axis E-Field sensor with an integrated RF switch device, microcontroller, and memory. Each of the three sensors is situated orthogonally inside the antenna housing to transmit and receive a spherical radiation pattern. In this way, all radiation at the antenna’s geographical position is measured, regardless of direction of arrival.

  • The 2000-1791-R isotropic antenna is a tri-axis E-Field sensor with an integrated RF switch. The RF switch is controlled by the analyzer via a USB port. Each antenna is individually characterized and comes with a certificate of conformance and supporting test data. Integrated solution for Electromagnetic Field Strength measurements for health and safety
  • Wide dynamic range
  • Fast switching time
  • Automatic download of antenna factors
  • Various demodulation options available
  • Model: Anritsu 2000‑1791‑R
  • Type: Tri‑axis E-field isotropic antenna
  • Frequency Range: 700 MHz – 6 GHz
  • Isotropy: ≤ ±2 dB (0.7–2 GHz), up to ±3.5 dB (3.6–6 GHz)
  • Dynamic Range: 0.2 mV/m – 200 V/m (1 kHz RBW)
  • Max Field Strength: 500 V/m (destruction limit)
  • Switch Time: < 10 µs
