2000-2141-R

2000-2141-R

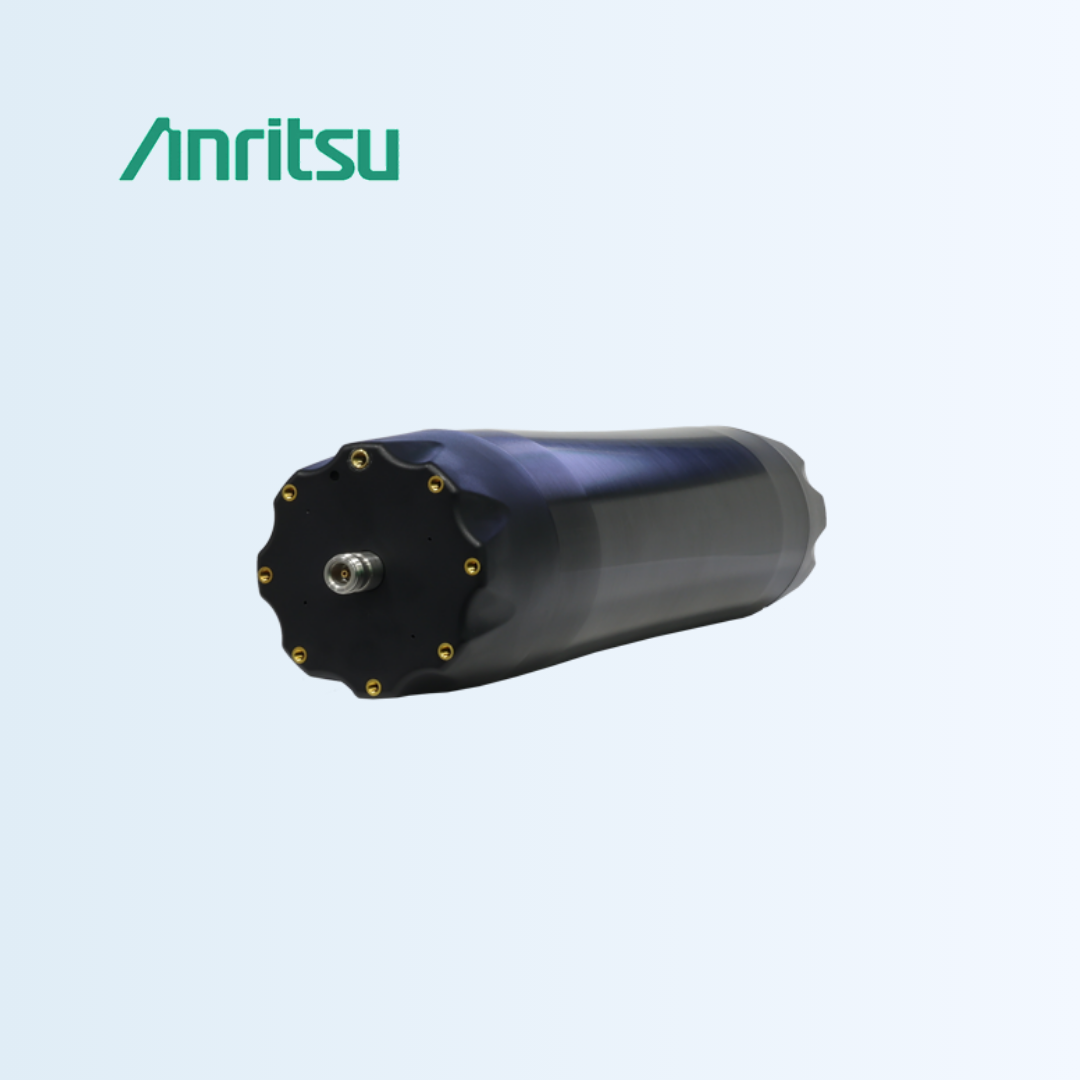

Ultrawide Broadband Antenna

Small, ruggedized, deployable, and uniform without sacrificing performance where signal detection is needed most. This antenna’s gain and efficiency have been maximized to give the greatest Omni-directional sensitivity from an amazingly low 20 MHz to well above 21 GHz. The nominal gain of the antenna is -7 to +0 dBi over 98% of the antenna. This antenna offers the finest wideband sensor for receiving RF signals. This sensor was optimized using state-of-the-art genetic algorithms and electromagnetic simulation tools. It covers the frequencies you need to detect most often – and then some. A perfect blend of performance and quality make this unit ideal for SIGINT and multiband communications applications. Complete with a ¼-20 tripod mount on the base.

  • Ultrawide broadband
  • Space-sensitive Passive Bi-Con Antenna
  • Tripod Mountable
  • Frequency Range: 20 MHz to above 21 GHz
  • Gain: Nominal -7 to +0 dBi over 98% of the antenna
  • Antenna Type: Passive Bi-Con (Biconical)
  • Impedance: 50 Ω
  • Connector: N-type female
  • Mounting: ¼-20 tripod mount on the base
  • Design: Compact, ruggedized, and deployable
