Horn Antenna with Mounting Interface

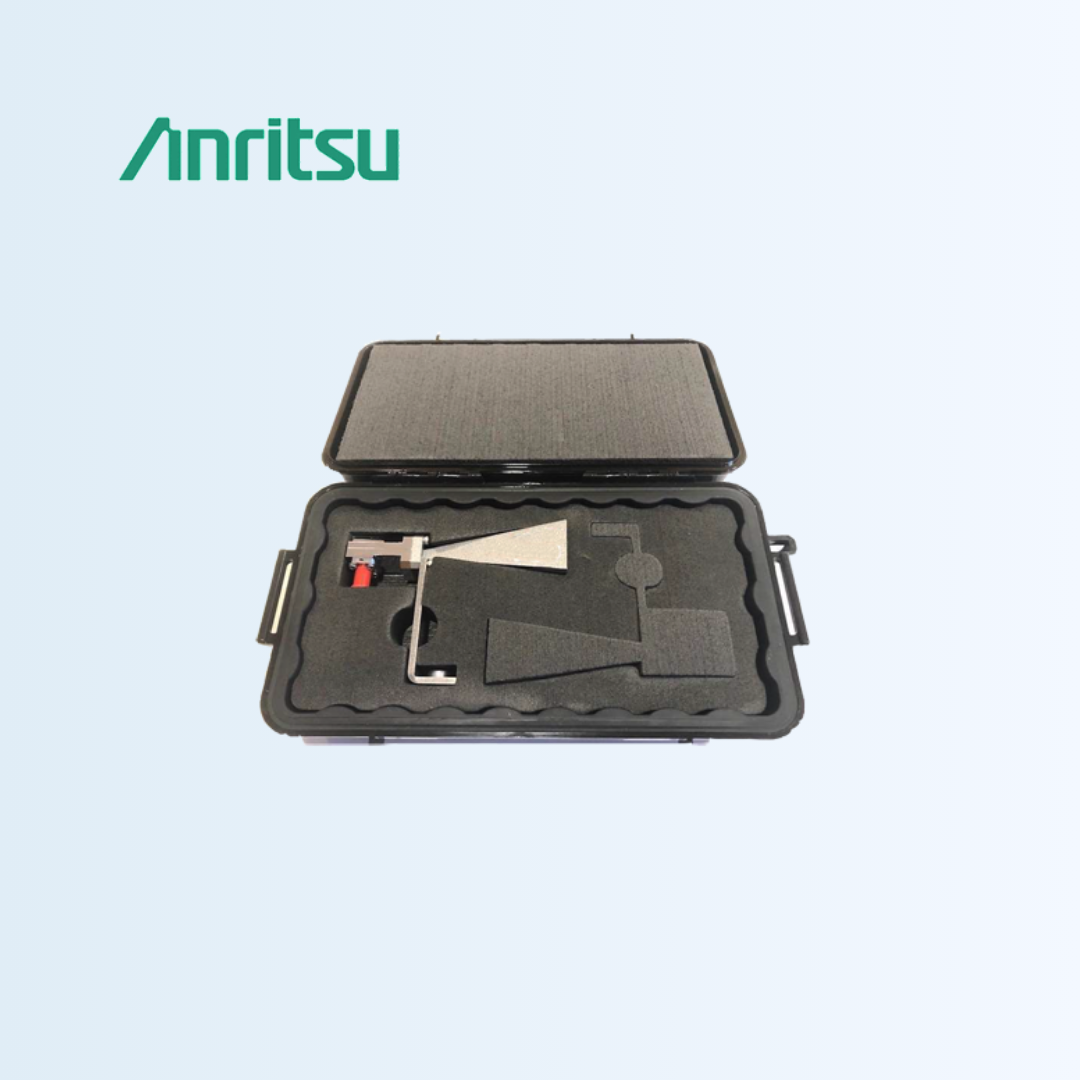

This horn antenna is specifically designed for over-the-air (OTA) and testing measurements for the mmWave commercial communications bands operating in the 5G licensed in 20-40 GHz spectrum. The 2000-2003-R comes as an assembly with a coaxial to waveguide adapter, K(f), as well as a mounting bracket that attaches to any commercial camera or tripod mount. The 2000-2003-R can be used with, but is not limited to, the MS2090A and MS276xA. This antenna is qualified and approved by AT&T and Verizon.

  • The 2000-2003-R features
  • A mounting bracket which makes the horn antenna flexible for indoor and outdoor use
  • A coaxial adapter that will allow customers an easy and hassle-free connection to their test instruments
  • Frequency Response : 24 to 40 GHz
  • Gain : 17-19 dBi
  • Return loss : 14 dB Typical
  • Beamwidth : 30 deg Typical
  • Isolation : 35dB
  • Temperature Range : -20C to +85C
  • Connector : 2.92mm K(f)
  • Mount : ΒΌ-20 TPI
  • Size : 110x40x80mm
