MA25200A

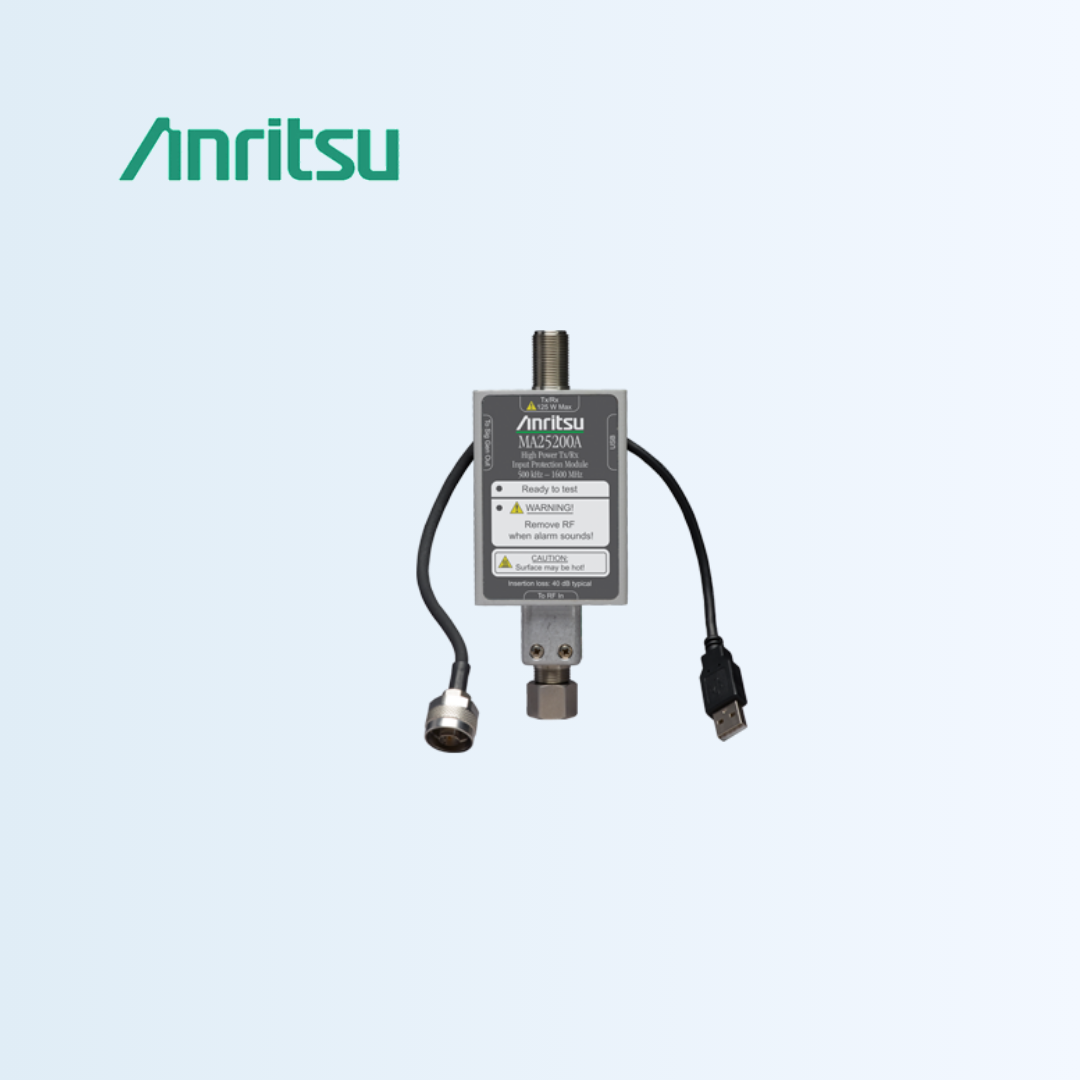

High Power Tx/Rx Input Protection Module

Features The MA25200A high power protection module safeguards the S412E ports from high power portable, mobile, or base station transmitters. It can accept 125 watt base station transmitters for up to one minute and 25 watt mobile transmitters for indefinite periods. It combines the signal generator port into the test port to support receiver sensitivity testing.

Protects your investment
MA25200A safeguards the S412E ports from high power portable, mobile, or base station transmitters
Combines signal generator and RF input port into a single connection
Attenuates RF power levels up to +51 dBm (125 W) by 40 dB
Maximum continuous power +44 dBm (25 W)
Alerts user of over power conditions
Audible alarm at 90 °C, nominal
Red LED when internal temperature exceeds 90 °C, nominal
Optional carrying case enables module to be stored when not needed

Attenuates RF power levels up to +51 dBm (125 W) by 40 dB.
Provides a flat ±1 dB insertion loss from 500 kHz to 1.6 GHz.
Features audible alarm at 90°C and red LED indicator when internal temperature exceeds 100°C.
Powered via USB from the connected instrument; includes a cooling fan
