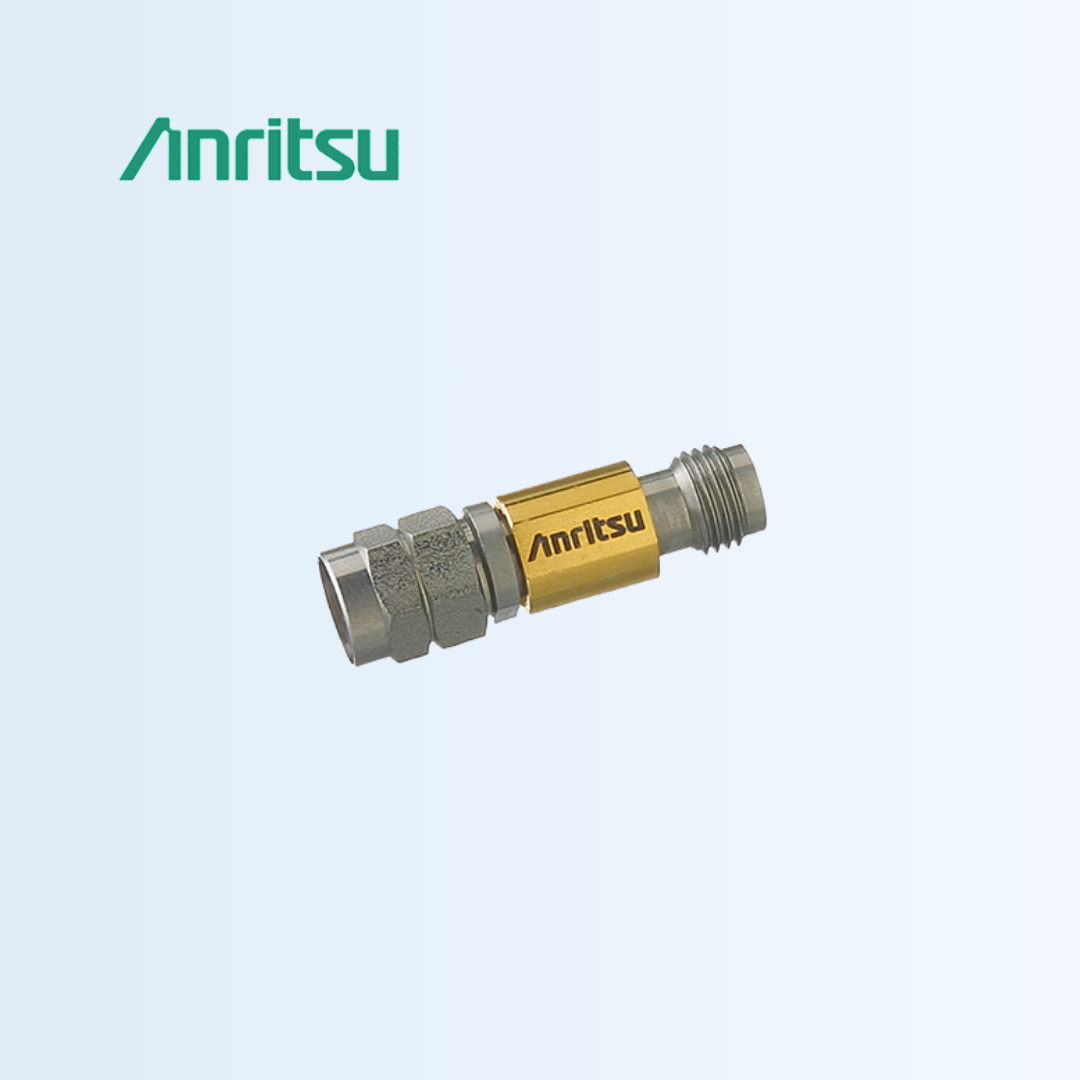

V265

DC Block

The V265 and W265 DC Blocks have been designed and optimized for optical communications and other high speed pulse, data or microwave applications. Based on the coaxial resilient connection – which is the same as on our V255/W255xx Gen II Bias Tees – it provides excellent low frequency response with very low losses and flat group delay over the temperature of operation. Designed to apply AC drive signals to a device while eliminating any DC voltage or current components. Both the V265 and W265 DC Blocks can be used in isolating DC leakage between two electrical components. The blocks have precision V and W1 connectors for 65 GHz and 110 GHz operability assures excellent impedance match across the wide bandwidth available. A one-year warranty is provided.

Ideal for Optical Communication applications
Low Insertion Loss
Rise Time 3 ps typical

Frequency Range : 50 KHz — 65 GHz, 30 KHz — 65 GHz typical
Insertion Loss : 1 dB — 65 GHz typical
Return Loss : 13 dB — 65 GHz typical
Rise Time : 3 ps typical
Group Delay : 84 ±2 ps typical
Max DC Voltage : 16 VDC
Max RF Power : 1 W
Connectors : RF In V(f), RF Out V(m)
Operating Temperature : 0 °C — 80 °C
