3656

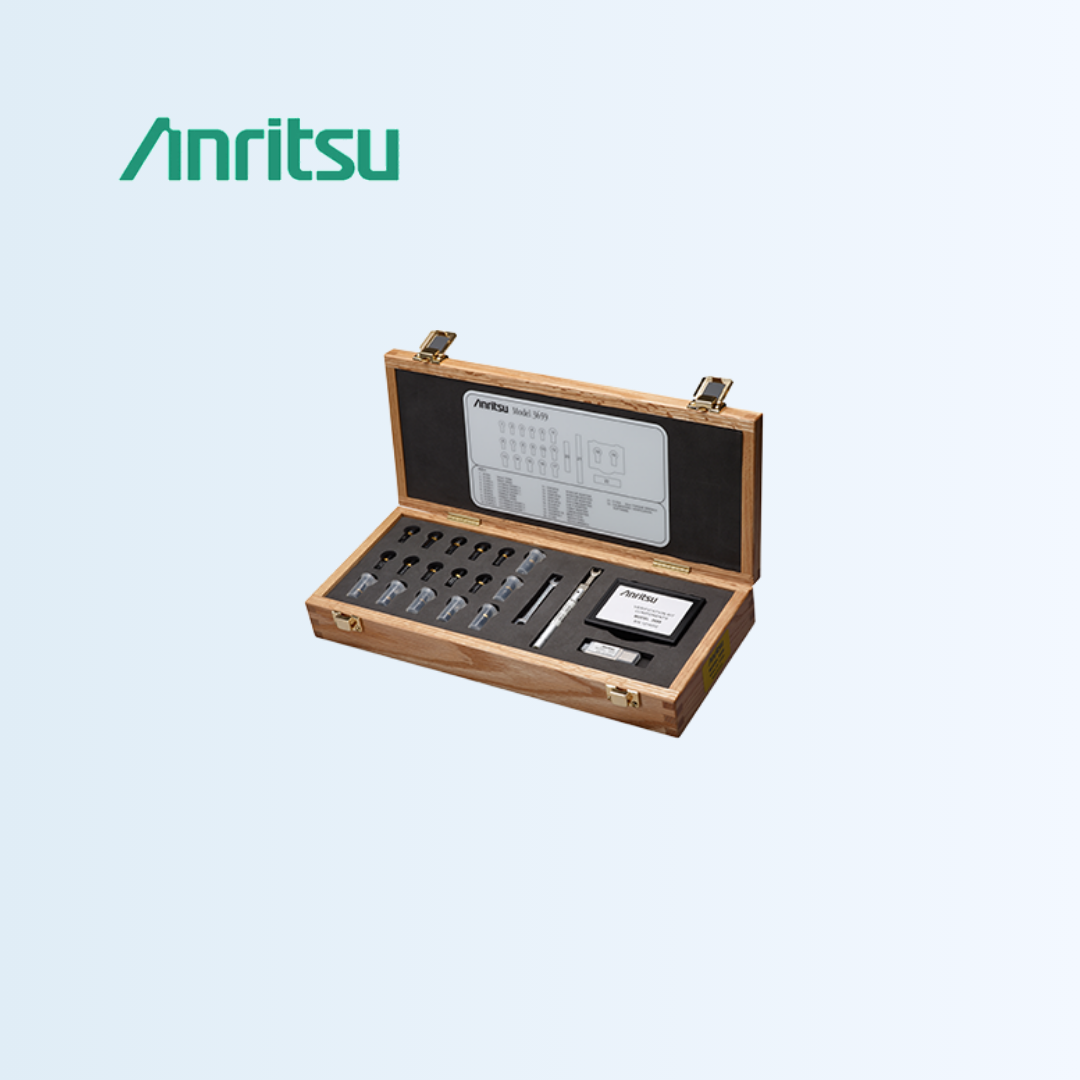

W1 Calibration kit

The Anritsu Calibration kits contain all the precision components and tools required to calibrate your VNA or VNMS for 12-term error-corrected measurements in the connector style of your choice. Components are included for calibrating male and female test ports as required. The kits support calibration with opens, shorts, and broadband loads.

Supports SOLT Calibration with Open, Shorts and Broadband Loads
Option 3 adds data-based calibrations

Kit is intended for VNA (Vector Network Analyzer) calibration using the precision components required for full 12-term error correction.
Includes male and female offset short standards in three lengths—2.02 mm, 2.65 mm, and 3.18 mm—enabling accurate phase reference.
Contains open standard and broadband load (termination) for both male and female connectors to complete the calibration set.
Kit supports precision W1-type connectors for high-frequency calibration compatibility.
