01-105A

01-105A

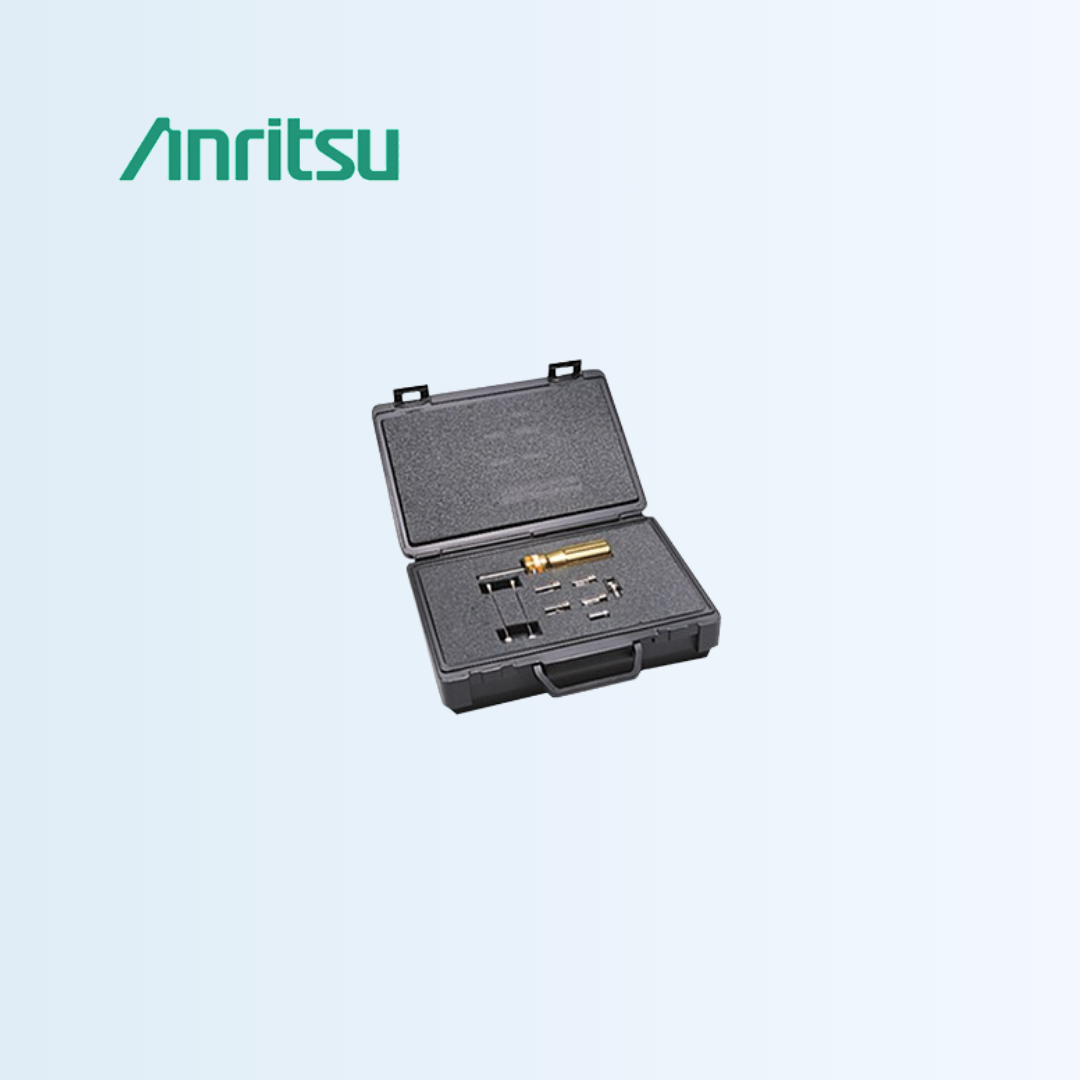

K and V Sparkplug Torquing Kit

This kit includes the tools needed to tighten the K102F, K102M, V102F and V102M sparkplug connectors into a housing at 1.8 Newton-meters (16 inch-pounds). It is also used to tighten the outer conductor of the K101F in-line female connector.

  • Preset torque handle
  • Kit includes all adapters needed to attach to female connector threads
  • It applies a controlled torque of 1.8 Nยทm (16 inch-pounds) to ensure proper, damage-free fastening
  • The toolset comprises a torque-limiting screwdriver handle, installation fixtures for K and V connectors, centering fixtures, tightening sockets, a 5/16-inch socket (1/4-inch drive), and combination wrenches to ensure proper alignment and torque application
  • Loctite RC/6091 retaining compound is recommended in conjunction with the toolset during installation for added reliability
