01-108

01-108

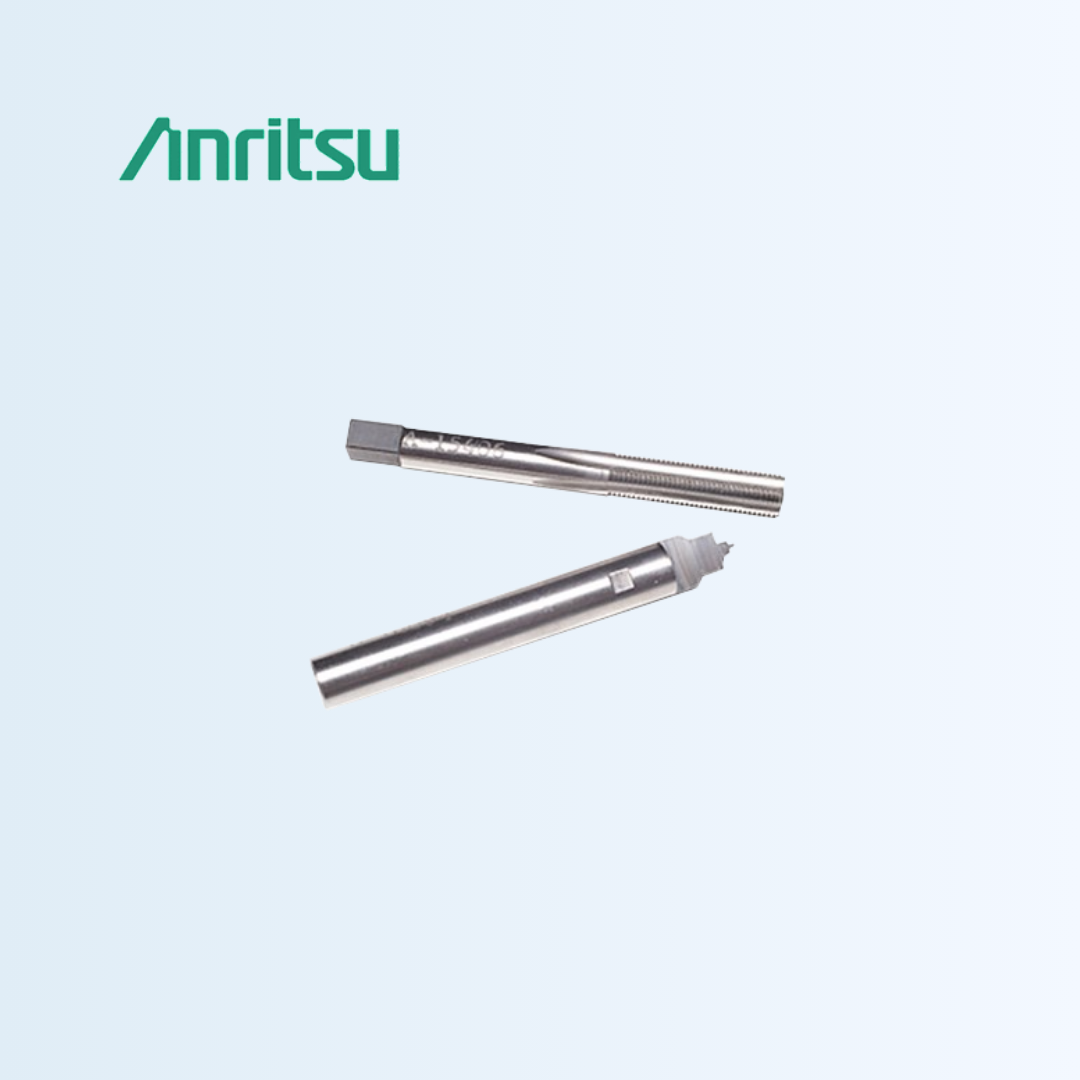

Drill and Tap Set

This drill and tap set is used to precisely machine the concentric holes needed for mounting K Connector ® in housings. This is the kit to use when stress relief contacts (also known as sliding contacts), K110-1, K110-2 or K110-3, are being used.

  • Allows all concentric holes to be drilled simultaneously using a mill.
  • Intended for use on soft metals such as aluminum or brass.
  • Also can be used on stainless steel at very low feed rates.
  • Center hole is sized to maintain proper characteristic impedance when sliding contacts are used.
  • The set includes Drill Part No. B16526 and Tap Part No. 783-255
  • It enables all concentric holes to be drilled simultaneously using a milling machine
  • It’s intended for use with soft metals like aluminum or brass; stainless steel can also be machined using this kit when very low feed rates are employed
  • The center hole is sized to maintain the proper characteristic impedance when sliding contacts are used
