TBMA3

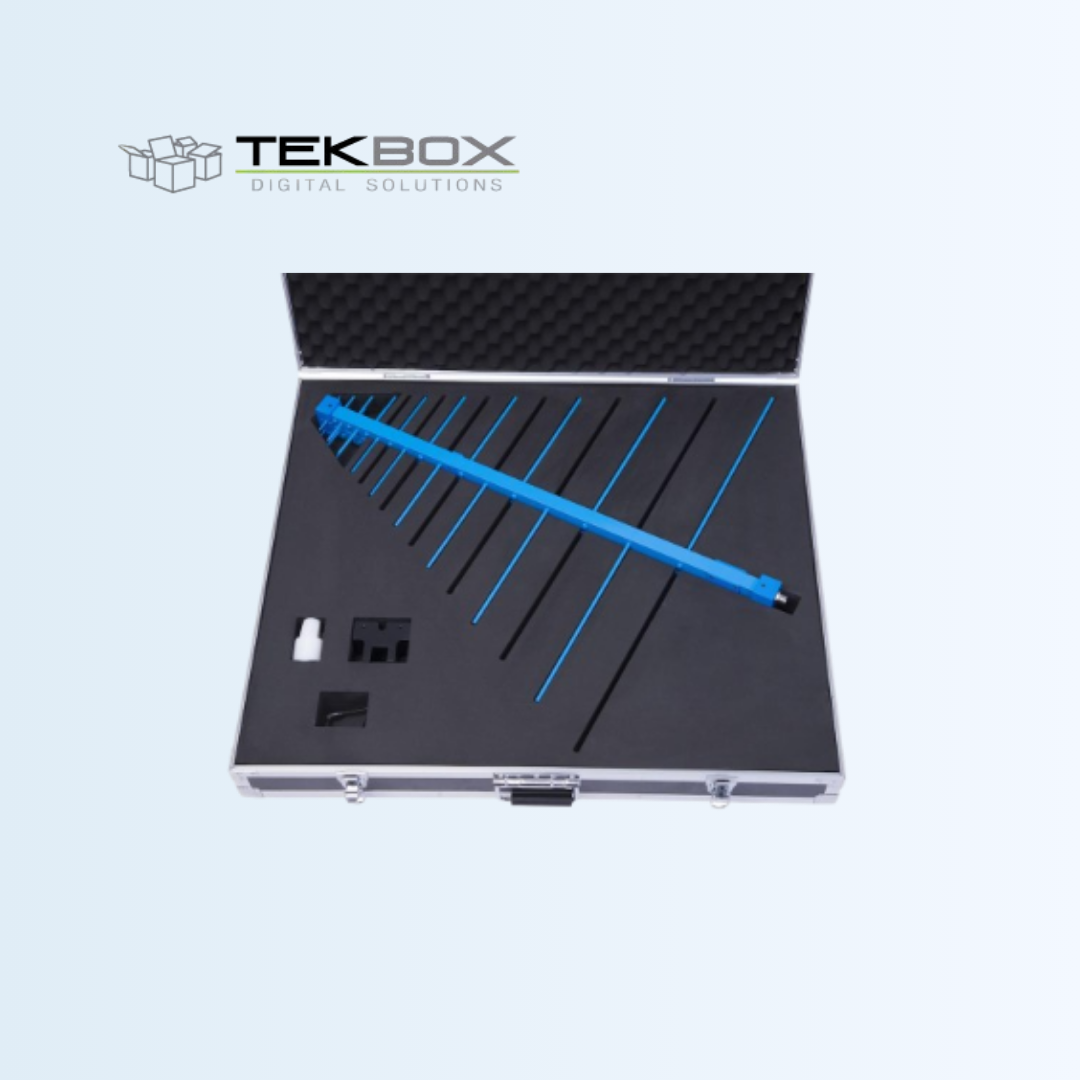

Log Periodic Measurement Antenna
CISPR 16 divides the frequency range into several bands and defines specific antennas for each of these bands. For the frequency range above 300 MHz up to 1 GHz, CISPR 16 specifies using logarithmic periodic antennas (log-periodic antennas ) for radiated noise measurements. The TBMA3 is an affordable logarithmic periodic measurement antenna, targeting radiated noise EMC precompliance testing. The TBMA3 is characterized from 250 MHz to 1.3 GHz and has VSWR and antenna factor values typical for log-periodic measurement antennas.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Type | logarithmic periodic |
| Frequency range | 250 MHz– 1300 MHz |
| Nominal impedance | 50 Ω |
| Connector | N type female |
| Maximum continuous input RF power | 100 W |
| Isotropic gain | 6 dBi ± 1.5 dB |
| Antenna factor | 14.2 … 27.5 dB/m |
| Voltage Standing Wave Ratio (VSWR) | < 1.95:1 over the entire |
| frequency range ; 1.35 | 1 average |
| Width | 749 mm (29.49”) |
| Height (With the mounting adapter) | 170.23 mm (6.70”) |
| Height (Without the mounting adapter) | 79.5 mm (3.13”) |
| Depth | 863 mm (33.98”) |
| Weight | 1.78 kg (3.92 lbs) |
| Tripod Adapter Thread Size | ¼” |
