- Multifunction EMI and spectrum analysis in a single unit
- Covers ultra‑low to VHF frequency range for versatile use
- Compliant with major EMC standards (CISPR‑16, ANSI, MIL‑STD)
- Multiple detector types operating in parallel (Peak, Quasi‑Peak, Average, RMS, etc.)
- Predefined measurement standards and setups for quick testing
- Includes spectrum analyzer, oscilloscope, tracking analyzer, and demodulation tools
- Works standalone or controlled from PC software
- Extensive data display and documentation capabilities

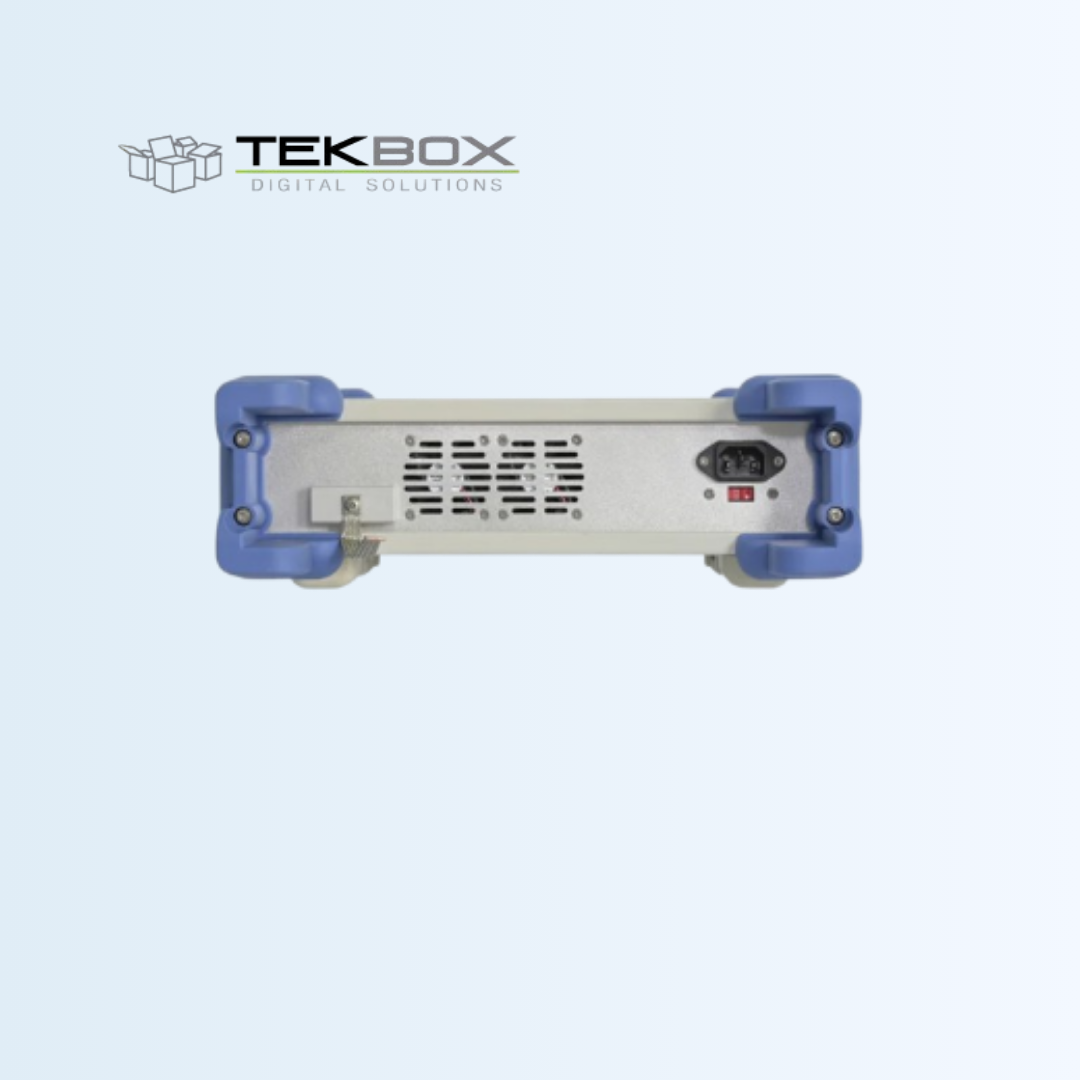

TBMR-110M
EMI-ANALYZER 1 Hz-110 MHz
International EMC Standards require various spectrum measurement methods and equipment to ensure that the EUT´s electromagnetic emissions do not exceed the specified limits. The TBMR-110M EMI Analyzer is designed to carry out conducted emission measurements. Its affordability and versatility make it a perfect tool for engineers doing pre-compliance measurements during the development process. Its ease of use also enables importers of electronic items to periodically assess if their suppliers supply consistent quality in terms of EMC compliance, without having to outsource it to test laboratories. High accuracy, versatility and high-speed measurements are only a few of the many features.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 1 Hz to 110 MHz |
| Noise floor | down to −162 dBm/Hz |
| Maximum RF input power | 30 dBm |
| Detector types | Peak, Quasi‑Peak, Average, CISPR‑Average, RMS, CISPR‑RMS |
| Resolution bandwidth (RBW) | 0.1 Hz to 3.5 MHz |
| Oscilloscope bandwidth | DC to 110 MHz, up to 250 MS/s sampling rate |
| Tracking generator | available for swept measurements |
| Reference frequency stability | ±10 ppm after warm‑up |
| RF input connector | 50 Ω Type‑N |
| Amplitude accuracy | typically <±0.8 dB |
| Dynamic range (tracking) | ~120 dB |
| Operating temperature range | 0 °C to 40 °C |
| Storage temperature range | −20 °C to 60 °C |
| Power requirement | AC 100‑120 V / 200‑240 V, 50/60 Hz |
| Enclosure | rugged housing for lab or field pre‑compliance testing |
| Accessories included | USB cable, power cord, attenuator, and analysis software |
| Application suitability | pre‑compliance EMC testing, product development, RF troubleshooting |
