- DC-coupled design for low–frequency and RF signal amplification.
- Provides flat gain across its intended frequency range — excellent for consistent amplification.
- Designed to boost the output of RF tracking generators and other weak signal sources.
- Suitable as a driver amplifier for larger DC-coupled amplifiers in measurement chains.
- Compact amplifier with standard BNC-female RF connectors for easy integration.
- USB-C powered with a simple indicator LED for power status.
- Robust and portable, suitable for test benches and EMC pre-compliance setups.

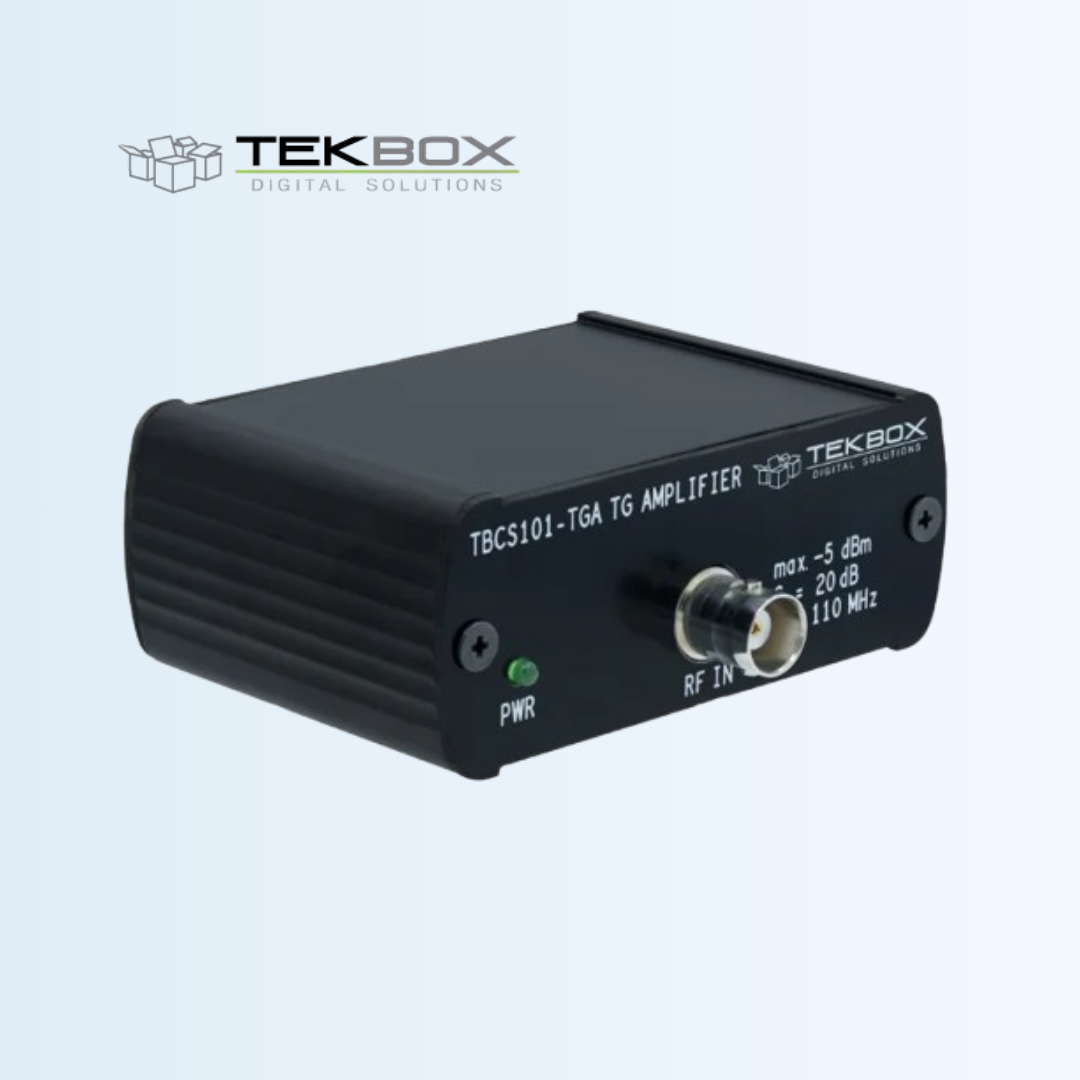

TBCS101-TGA
DC-coupled Low Noise Amplifier
The Tekbox TBCS101-TGA is a DC-coupled low-noise amplifier designed to boost low-level signals from DC up to tens of MHz, making it especially useful as a driver amplifier for high-power DC-coupled RF amplifiers and to enhance the output of tracking generator signals in measurement receivers. It’s ideal for use in EMC test setups and lab signal conditioning.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | DC – 40 MHz, 3 dB band width, typical |
| Gain | 20 dB, typ. ( ≙ linear voltage gain 10) with 50 Ohm load impedance |
| RF-connectors | BNC-female |
| Input impedance | 50 Ω |
| Input return loss | > 30 dB, typ. |
| Maximum input level | -5 dBm ( ≙ 0.35 Vpp ); for output saturation |
| Maximum ratings | +20 dBm in a 50 Ohm system / ± 1.5V DC max. input rating |
| Output impedance | 50 Ω |
| Output return loss | > 20 dB, typ. |
| P1dBout | +15 dBm ( ≙ 3.5 Vpp ); output saturation |
| IP3out | +25 dBm |
| DC offset | < 100mV at output; input terminated with 50 Ohm |
| Power-connector | USB-C |
| Indicator LEDs | Power ON |
| Operating voltage | 5 V DC |
| Current consumption | 90 mA |
| Operating temperature range | -20°C to +50°C |
| Dimensions | W 82 mm x H 33 mm x L 80 mm |
| Weight | 100 g |
