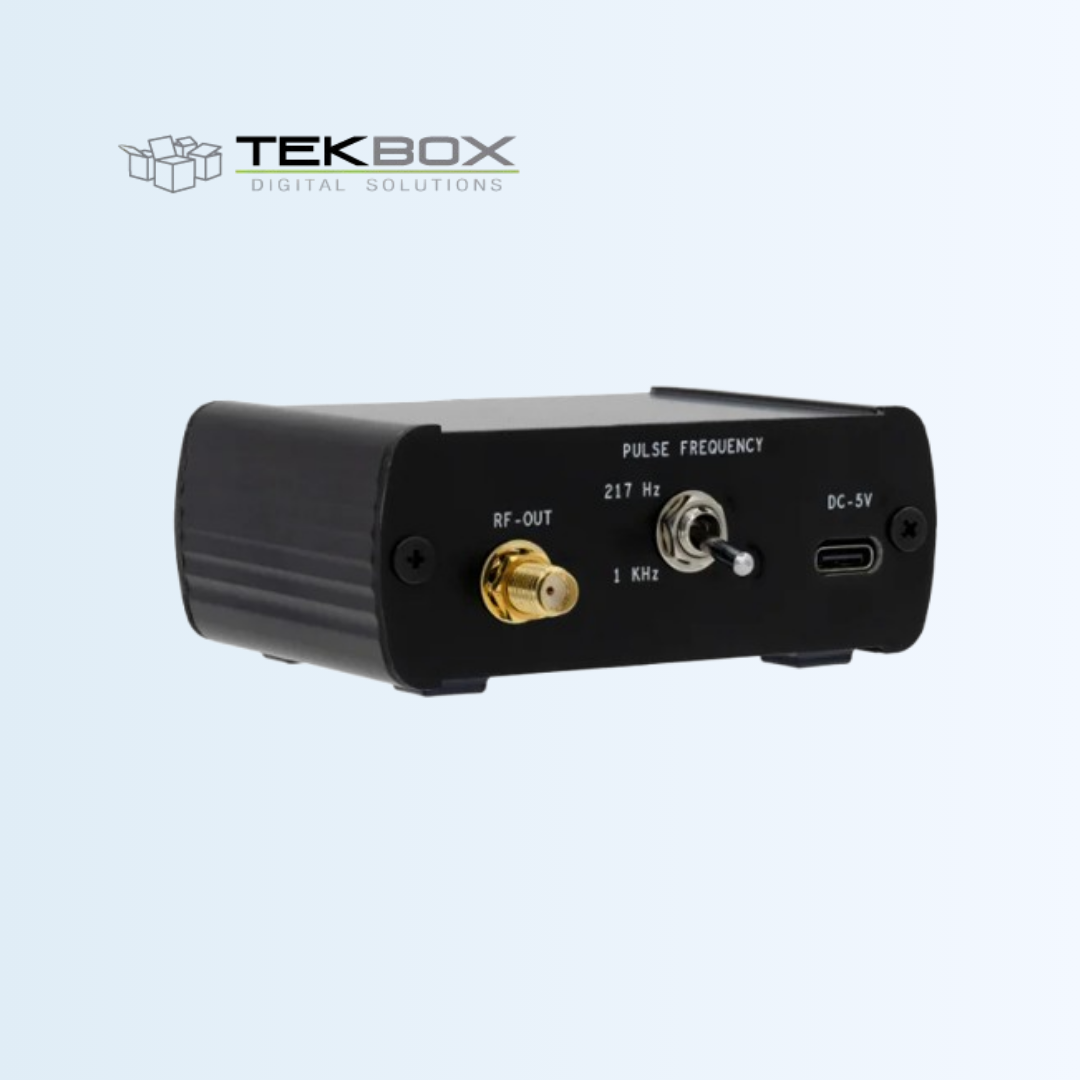

TBMDA7

Modulated Wideband Driver Amplifier

The Tekbox TBMDA7 is a modulated wideband driver amplifier that provides an affordable RF signal source for immunity testing of electronic building blocks and products. It is designed to be driven by the tracking generator output of a spectrum analyzer, making it ideal for boosting low-power signals to levels usable for EMC tests, near-field probing, and TEM cell field generation.

Datasheet

Features

Key capabilities and advantages

▼

Modulated wideband RF driver amplifier for EMC immunity testing
Designed to be driven by a spectrum analyzer tracking generator
Built-in modulation modes for immunity test signals
Supports CW (continuous wave) operation
AM modulation suitable for standard EMC testing
Pulse modulation for susceptibility and immunity evaluation
Can simulate mobile phone TDMA-like interference
Ideal for driving near-field probes
Suitable for use with TEM cells and small RF test setups
Compact and portable design
Cost-effective solution for pre-compliance EMC testing
Easy integration into laboratory and R&D environments

Specification

Technical specifications and parameters

▼

Frequency range	1 GHz – 3 GHz
RF Input / Output	50 Ohm, SMA female; DC supply: Mini-USB-C connector
Nominal supply Voltage	5V, typ. 800mA; maximum supply voltage 5.5V.
Nominal input power	-10 dBm to – 8 dBm; maximum input power: -5 dBm continuous, -3 dBm max.
Operating temperature range	-20°C to 50°C
Harmonics	< -10 dBc typ. @ 1.5 GHz
Harmonics	< -15 dBc typ. @ 1.5 GHz
Internal modulation frequency AM	1 kHz ±10%
Internal modulation frequencies PM	1 kHz ±10%, 217 Hz ±20%
Duty cycle, PM	50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz
