- Accurate solar radiation measurement
- SDI-12 compliant communication interface
- High stability and long-term measurement reliability
- Low power consumption for remote monitoring systems
- Robust, weather-resistant design for outdoor installation
- Easy plug-and-play integration with data loggers

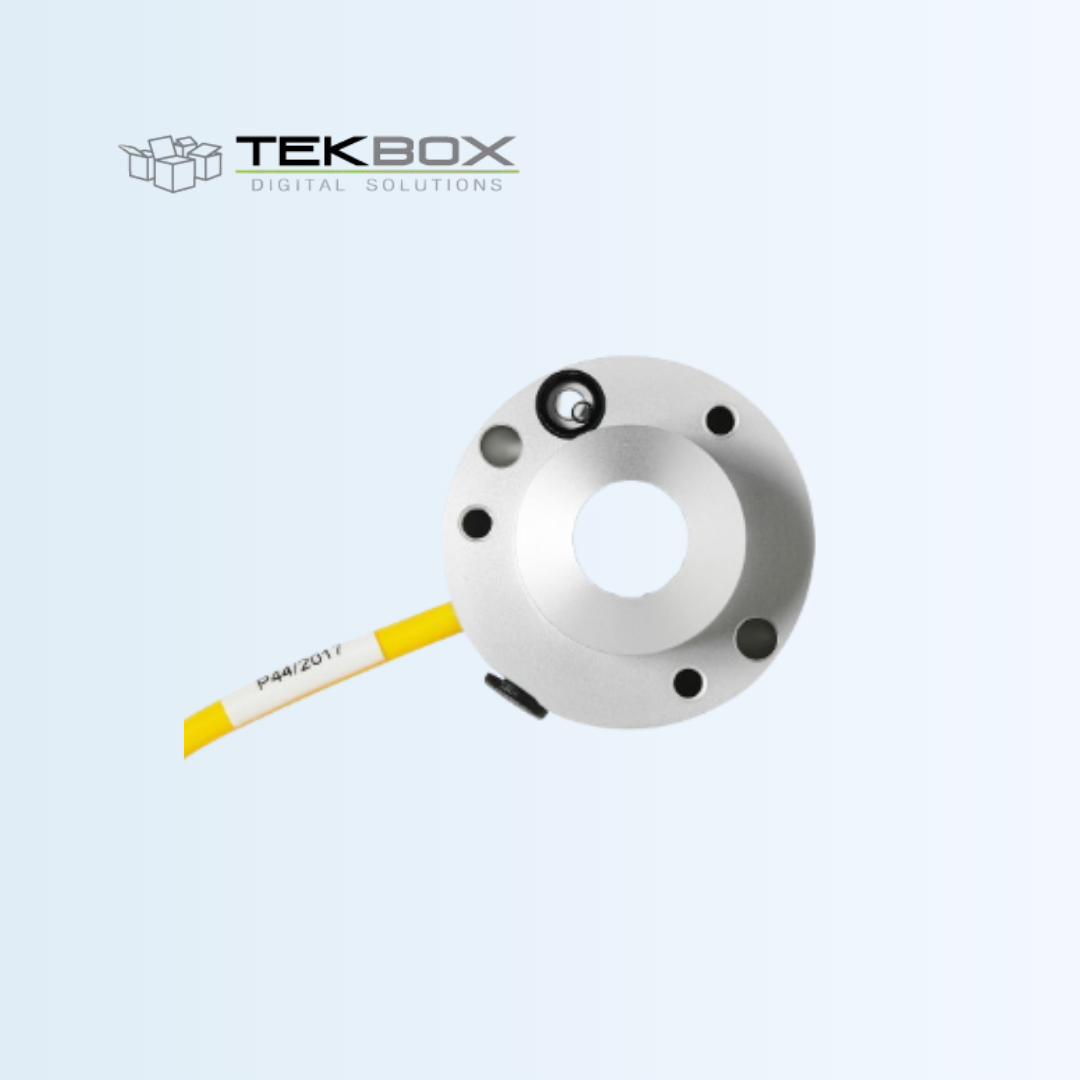

TBSSR1 SDI-12 Pyranometer
Pyranometer
The TBSSR1 is based on the popular SP- Lite2 pyranometer of Kipp&Zonen. It contains a SDI-12 interface / data acquisition board potted inside a cavity in the base of the housing. Consequently the TBSSR1 comes in exactly the same form factor as the original SP- Lite2. The sensor offers a resolution of 0,25W/m2. It is already calibrated to the individual sensitivity of the SP Lite2.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Spectral range | 400 to 1100 nm |
| Measurement range | 9 to 1200 W/m² |
| Directional error | <10 W/m² (up to 80° at 1000 W/m² beam) |
| Field of view | 180° |
| Temperature compensation | yes |
| Measurement response time | 1 second |
| Communication standard | SDI-12 v1.3 |
| Installation | plug and play |
| Supply voltage range | 6–16 V |
| Idle current | <40 µA |
| Operating temperature range | –40°C to +80°C |
| Weight | 0.12 kg |
| Value proposition | excellent price-performance ratio |
