- More than 15km range with clear line of sight.
- Configurable measurements and transmission intervals.
- Any usual agricultural application where deploying SDI12 cables is an issue.
- Acts as a range extender for SDI-12 (up to 15km instead of 60m).
- SDI-12 sensors network capacity increase (thousands of nodes can be
- deployed with only one gateway).
TBS12B-32

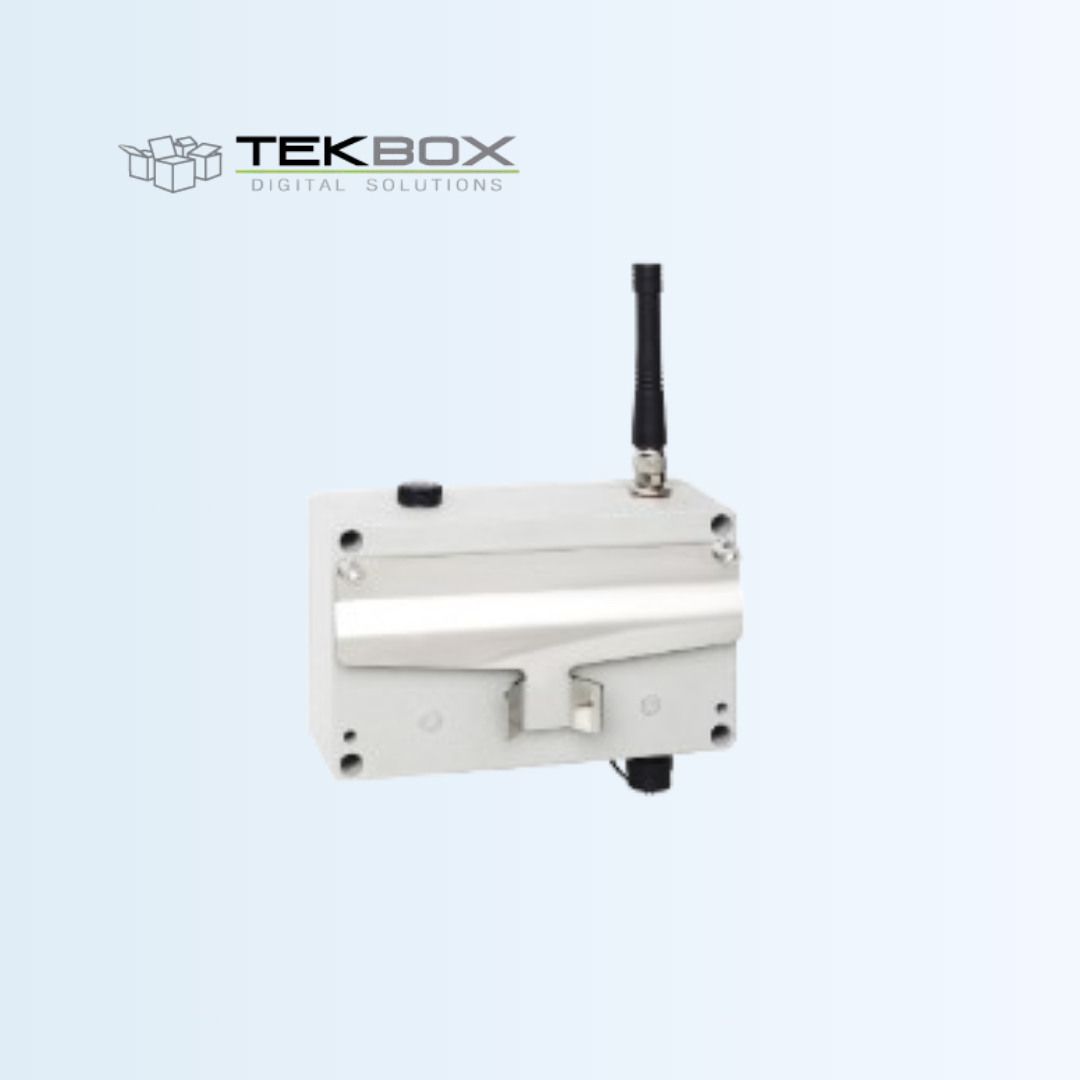

Battery powered LoRaWAN RTU for SDI-12 sensors
TBS12B-32 are part of a range of battery powered outdoor LoRaWAN RTU. They have been designed to cope with applications where SDI-12 maximum range is a limitation by leveraging the long-range capability of LoRa. TBS12B-32 are delivered within their IP67 rated aluminum die cast housing along with an optional fixture to tie them to a pole. Their connector allows plugging directly one SDI-12 sensor or TBS04 SDI-12 junction box would multiple SDI-12 sensors need to be locally deployed.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| SDI-12 version | 1.3/1.4 |
| Configurable measurement and transmission intervals | Yes (both intervals are aligned) |
| LoRaWAN version | 1.03 |
| LoRaWAN configuration | Same than TBS12B + Advanced OTAA configuration |
| Time retention / synchronization | Yes |
| Remote configuration (downlink commands) | Yes |
| Configuration tool | Yes (PC GUI) |
| Configuration port | USB |
| Power supply | 3 * 1.5V D cell |
| Idle current | 10μΑ |
| Operating Temperature Range | -40°C - +85°C |
