- Complete set of 44 different 50 Ω coaxial adapters covering N, SMA, SMB, BNC, and RCA interfaces.
- Facilitates easy connection and conversion between multiple RF connector types for measurement, testing, and prototyping.
- High-quality construction with reliable connectors suitable for professional RF and EMC work.
- Neatly packed in a beech-wood box with foam inlay for organization and protection.
- Covers adapters that support frequencies up to 6 GHz depending on connector pair.
TBCAS1
Coaxial Adapter Set

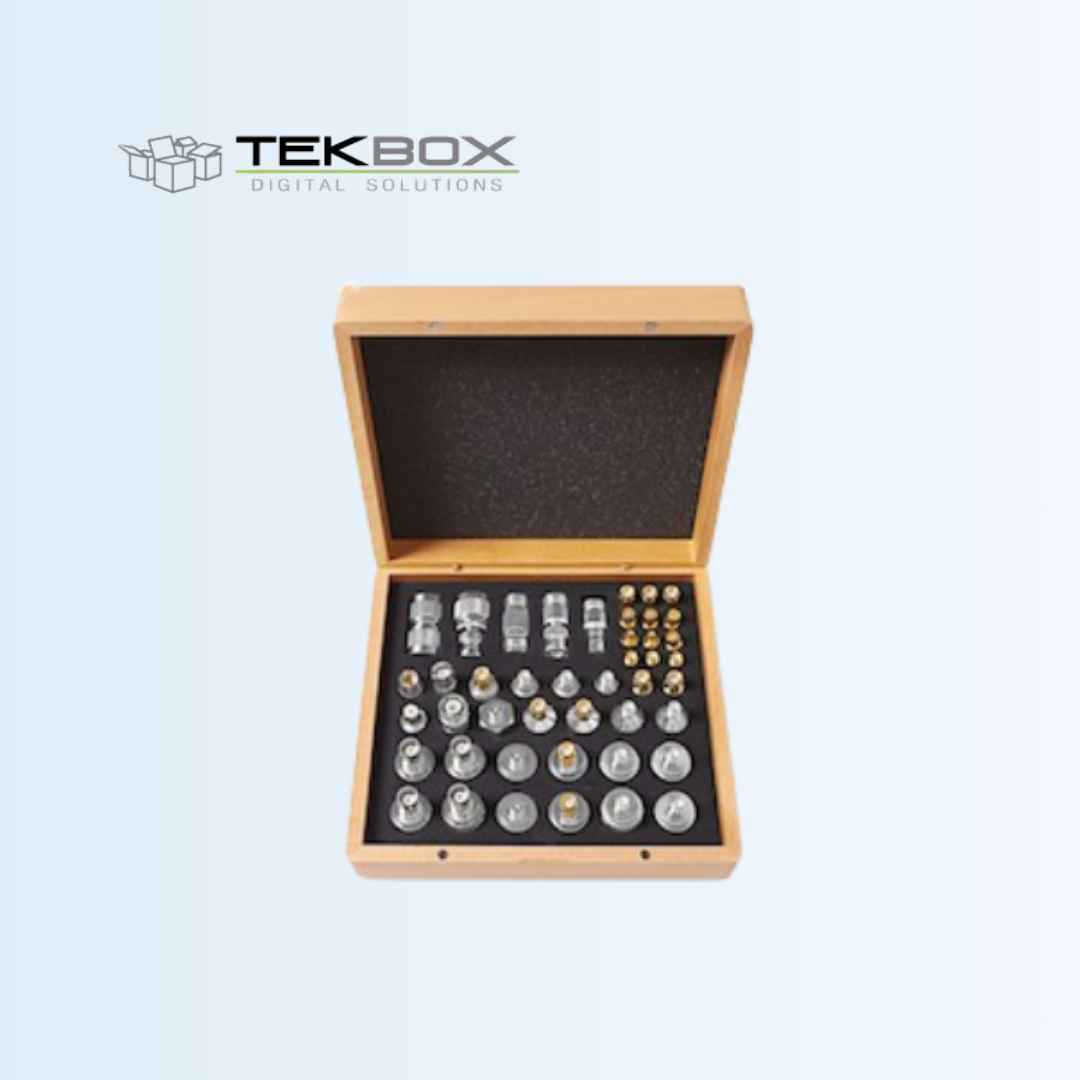

The TekBox TBCAS1 Coaxial Adapter Set is a 44-piece professional RF adapter kit containing the most commonly used 50 Ω coaxial adapters organized in a durable beech-wood storage box. It provides quick and flexible connection options between RF test equipment and devices under test, making it ideal for labs, field work, and EMC/RF measurement setups.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Total Adapters | 44 pieces |
| Connector Types | N, SMA, SMB, BNC, RCA |
| Impedance | 50 Ω (nominal) |
| Storage Case | Beech-wood box with foam inlay |
| Supported Frequency | Up to ~6 GHz (depends on connector type) |
| Weight | Approx. 1.3 kg |
| Dimensions | ~190 × 170 × 65 mm |
