Vector Network Analyzer

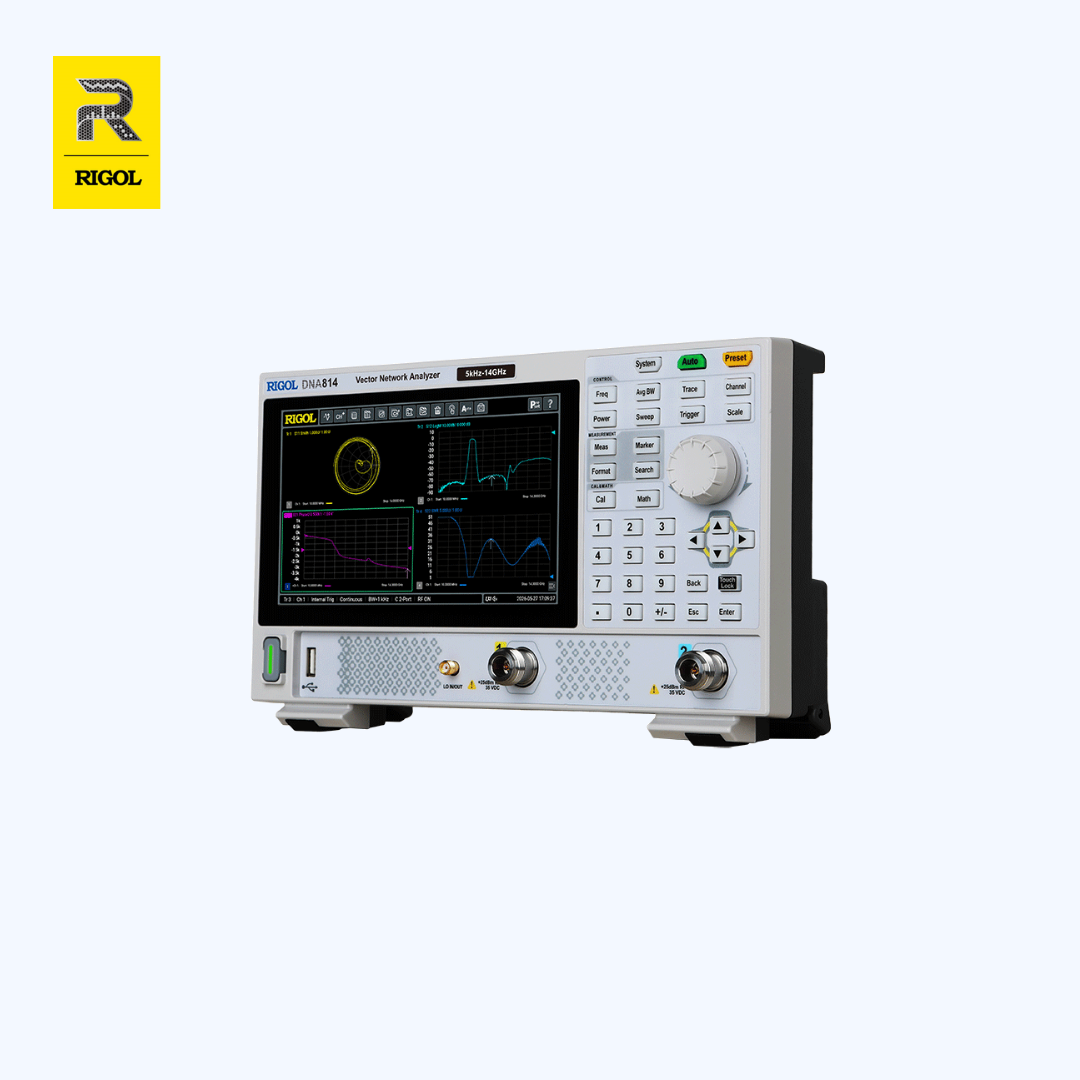

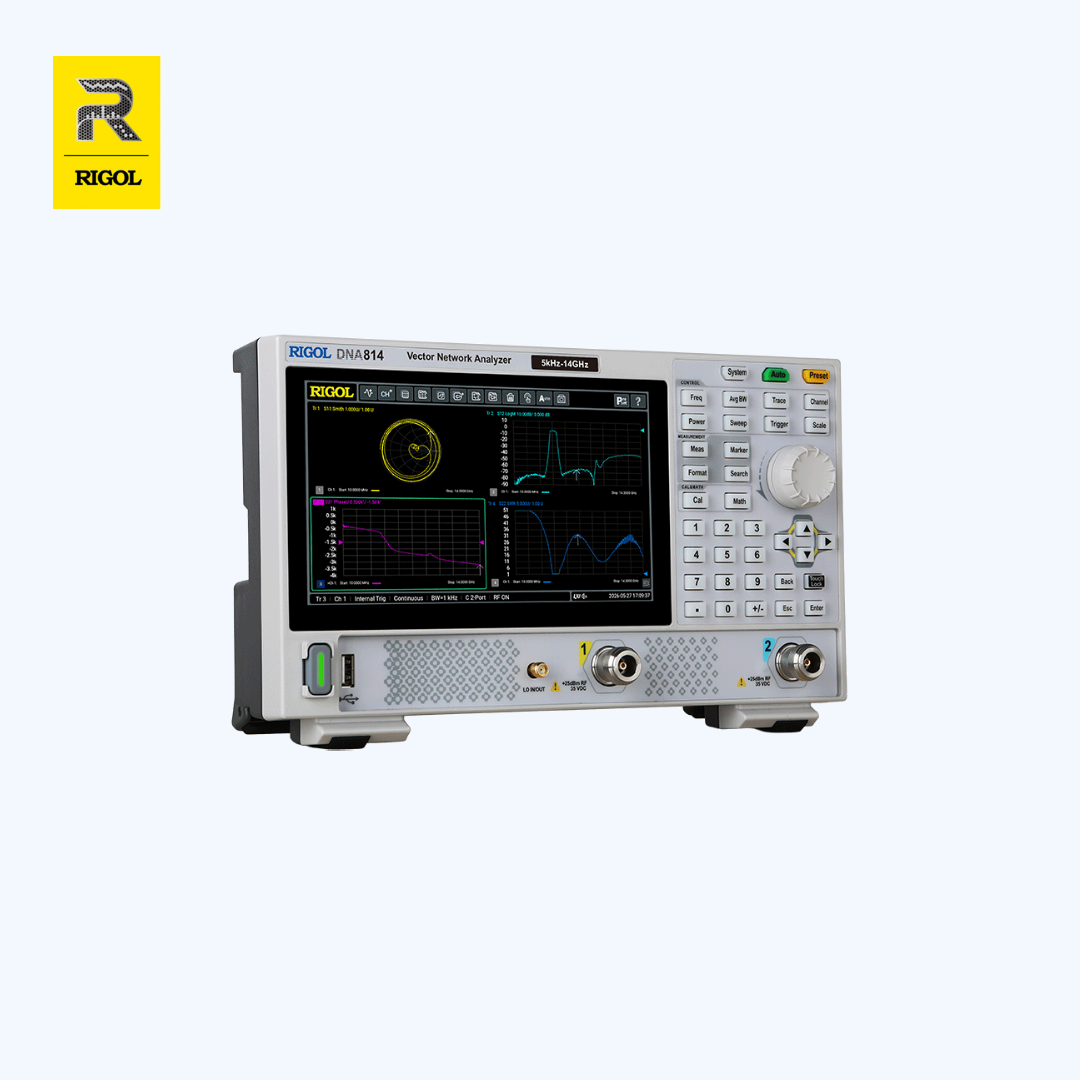

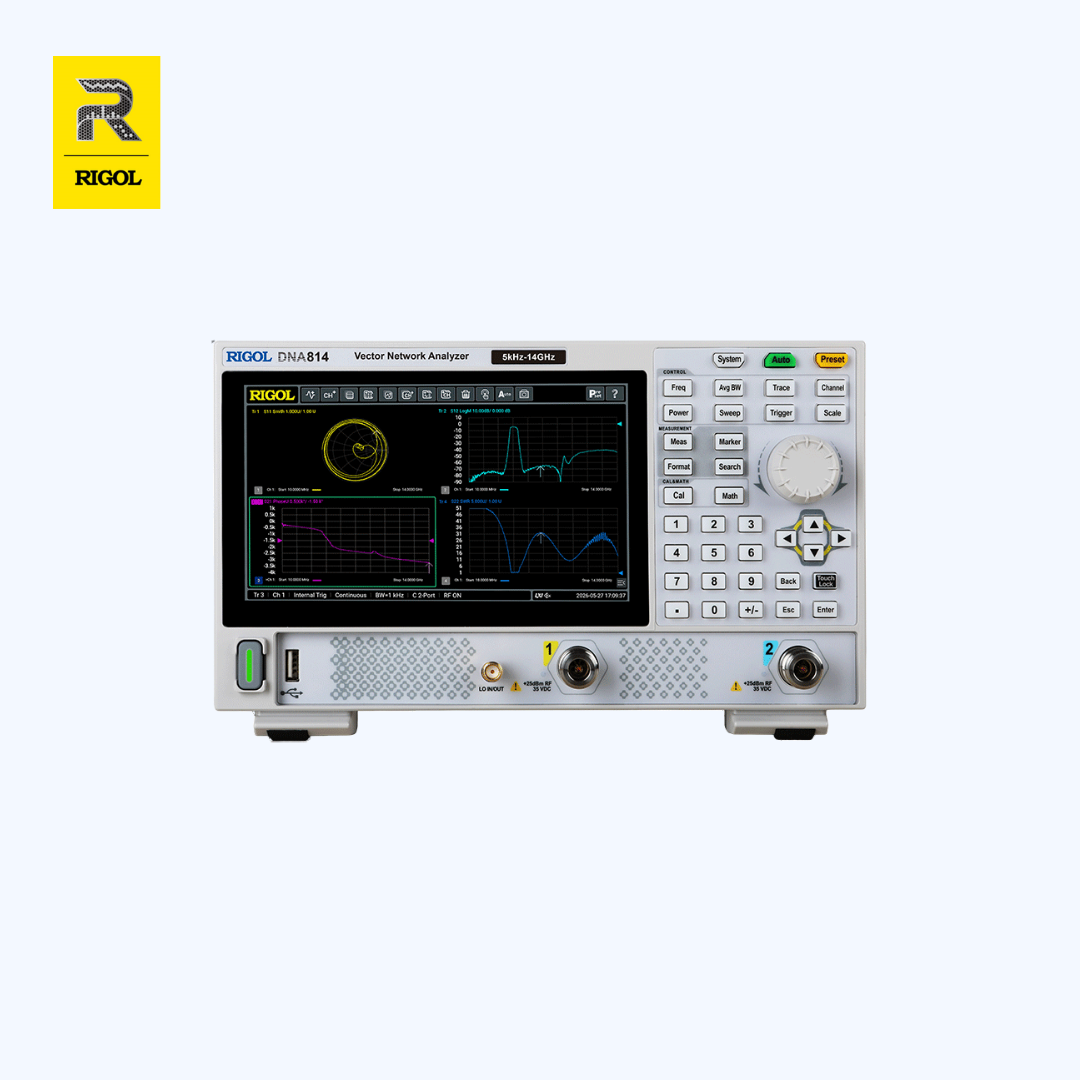

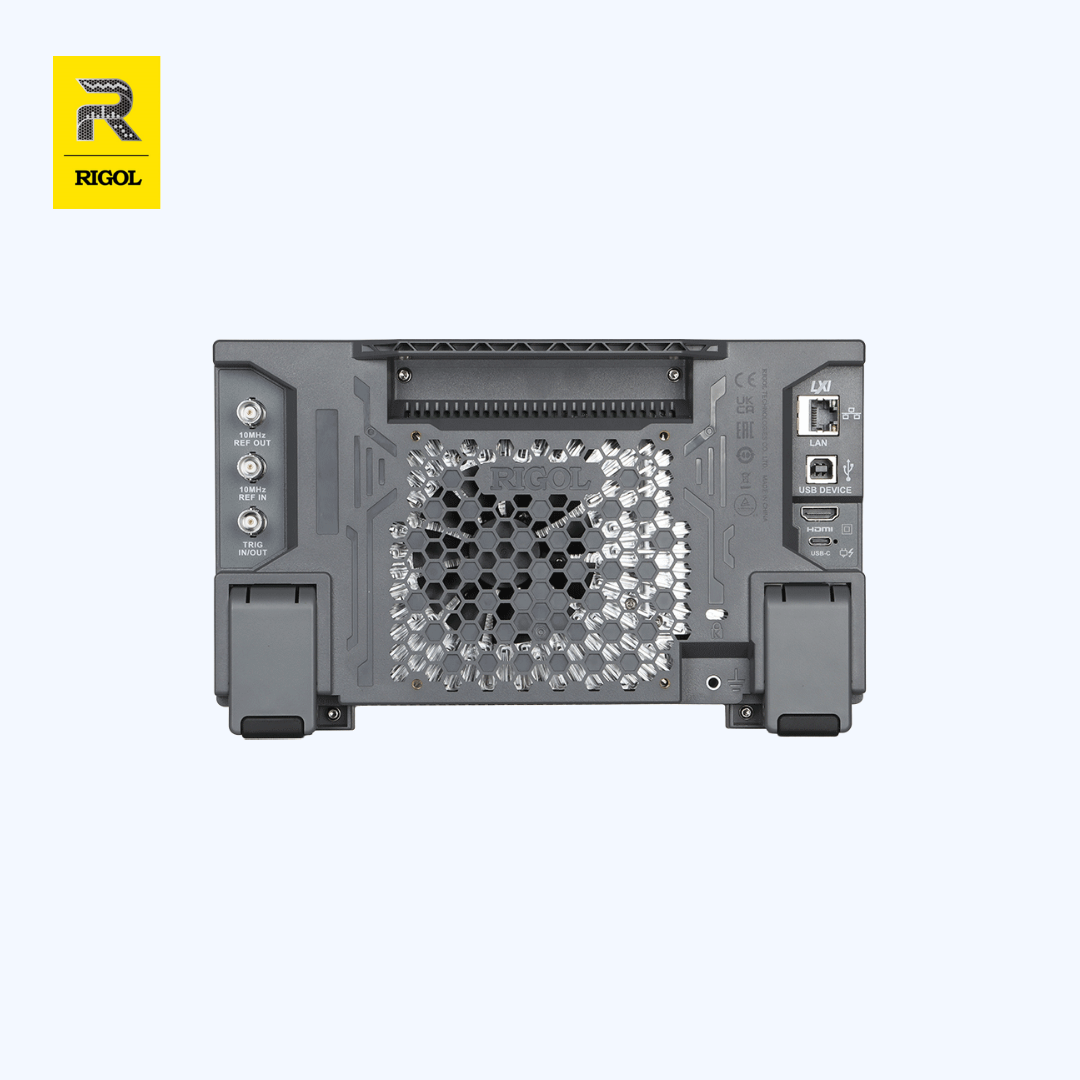

The DNA800 Series is an ultra-portable, entry-level vector network analyzer featuring a true two-port architecture and three frequency-range options covering 5 kHz to 14 GHz. It supports standard S-parameter and impedance measurements with a typical 125 dB dynamic range, 1 Hz to 3 MHz IF bandwidth, and trace noise as low as 0.005 dB rms. A 7-inch multi-touch display, HDMI output, SCPI remote programming, and compatibility with commonly used command sets support efficient automated testing in the lab and on the production line.
