- Frequency-selective and wideband measurement of magnetic fields
- Non-directional (isotropic) measurement with Hall sensors
- Extremely wide measurement range
- FFT spectrum analysis and time response display
- Optical interface for PC or NBM-550

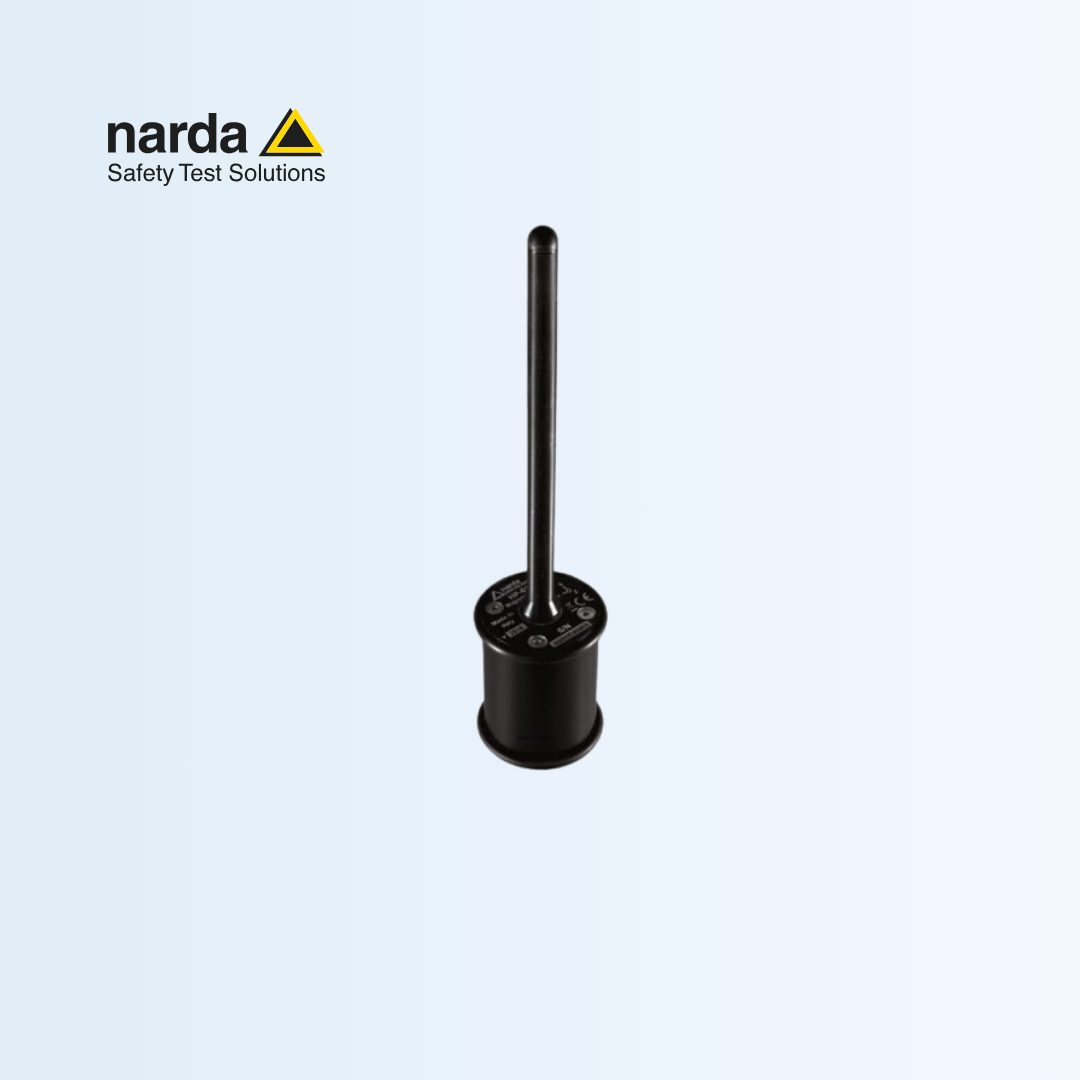

Magnetometer HP-01
Magnetometer for measurement and analysis of static and time-variable magnetic fields
Magnetic field meter for fields from 0 Hz (DC) to 1 kHz. The meter includes a very powerful FFT analyzer that allows signal analysis in both the time and the frequency domains.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency Range | 0 Hz to 1000 Hz |
| Dynamic Range | 120 dB |
| Measurement Range | 10 µT to 10 T |
| Temperature Range | -20 °C to +55 °C |
| Weight | 100 g |
| Dimensions | 200 mm x 43 mm |
