- 16 powerful instruments
- Software-defined multi-instrument platform
- Real-time FPGA processing
- Low-noise, high-bandwidth analog front end
- Fast and seamless instrument switching
- Multi-channel synchronized measurements
- Remote access and automation support
- Intuitive real-time user interface
- Advanced triggering and clock synchronization
- High-speed data logging
- Compact and space-efficient design

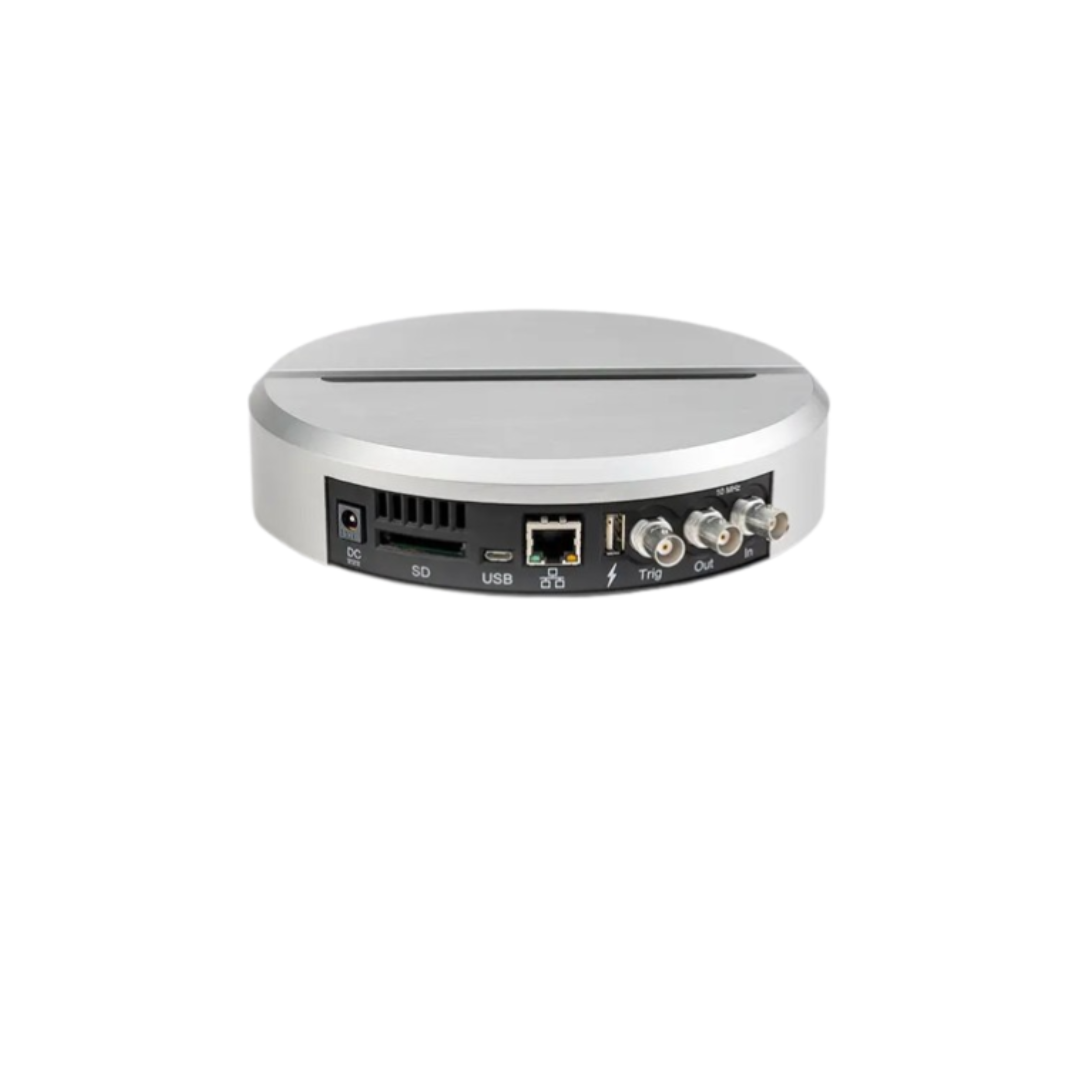

Moku Lab
Moku Lab is a reconfigurable hardware platform that combines the digital signal processing power of an FPGA with versatile lownoise inputs and outputs. Simplify your workflow with access to 15 high performance instruments that enable you to measure what you need, when you need. The analog front end is designed for maximum versatility. Configure two 500 MSa/s inputs for AC or DC coupling, 50 Ω or 1MΩ impedance, and an input voltage range of 1 Vpp or 10 Vpp. Moku:Lab also features two 1 GSa/s outputs with 300 MHz anti-aliasing filters, allowing you to generate two high-precision waveforms while measuring on its inputs. Powered by the Xilinx Zynq 7020, Moku:Lab is an ideal solution for research applications.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Analog Bandwidth | 200 MHz |
| Analog Inputs | 2 channels, 10-bit ADC |
| Analog Outputs | 2 channels, 16-bit DAC |
| Input Impedance | 1 MΩ / 50 Ω selectable |
| Sampling Rate | Up to 500 MSa/s |
| Output Sampling Rate | Up to 1 GSa/s |
| Input Voltage Range | ±5 V |
| Output Voltage Range | ±5 V |
| Clock Options | Internal high-stability clock + external reference support |
| Jitter Performance | Low-jitter synchronized architecture |
| Processing Engine | FPGA-based real-time signal processing |
| Connectivity | USB, Ethernet, Wi-Fi |
| Data Logging | High-speed local & remote logging |
| Control Interface | Windows, macOS, iPad |
| Power | 12 V DC input |
| Dimensions | Compact desktop form factor |
| Weight | Lightweight, portable design |
