- 4 kW type can operate even with single-phase 200 volt input. (However, current is limited to about 75% of rated value).
- Standardly equipped with RS-232C interface.
- Supports USB/GPIB/LAN interface.(Factory option).
- Controllable from Excel VBA and LabView with measuring instrument driver. Driver can be downloaded free at our web site.
- Capacity can be expanded through parallel operation (up to five units of the same model).
- Equipped with reliable output ON/OFF delay function during sequence operations.
- Memory function (three sets of voltage/current).
- Voltage/current monitor output.
- Status signal output.
- Remote sensing function.
- Protective functions (shutdown, as well as protection against overvoltage, overcurrent, overheating, input phase interruption, fan malfunction, sensing, and bleeder circuit overheating).
- High noise resistance (for reassurance during car electronics testing).
- Good maintainability, including easy fan replacement.
- 3-phase 400V input available (8kw type).
- The large-current model assembles multiple PAT-T series units with special rack parts.
- The PAT-TMX is a model equipped with the breaker.
- A total of 82 models are available, ranging from 16 kW to 40 kW.
- The LAN interface applies to the LXI (LAN eXtensions for Instrumentation).
- Lifetime testing of headlights, etc.
- Performance and endurance testing of inverters for use in high-capacity air conditioners and motors.
- Performance and endurance testing of brushless motors for use in EPS, MG, and SG units.
- Performance testing of IPM, IGBT, and other power modules.
- Performance testing of starter motors.
.png)
.png)

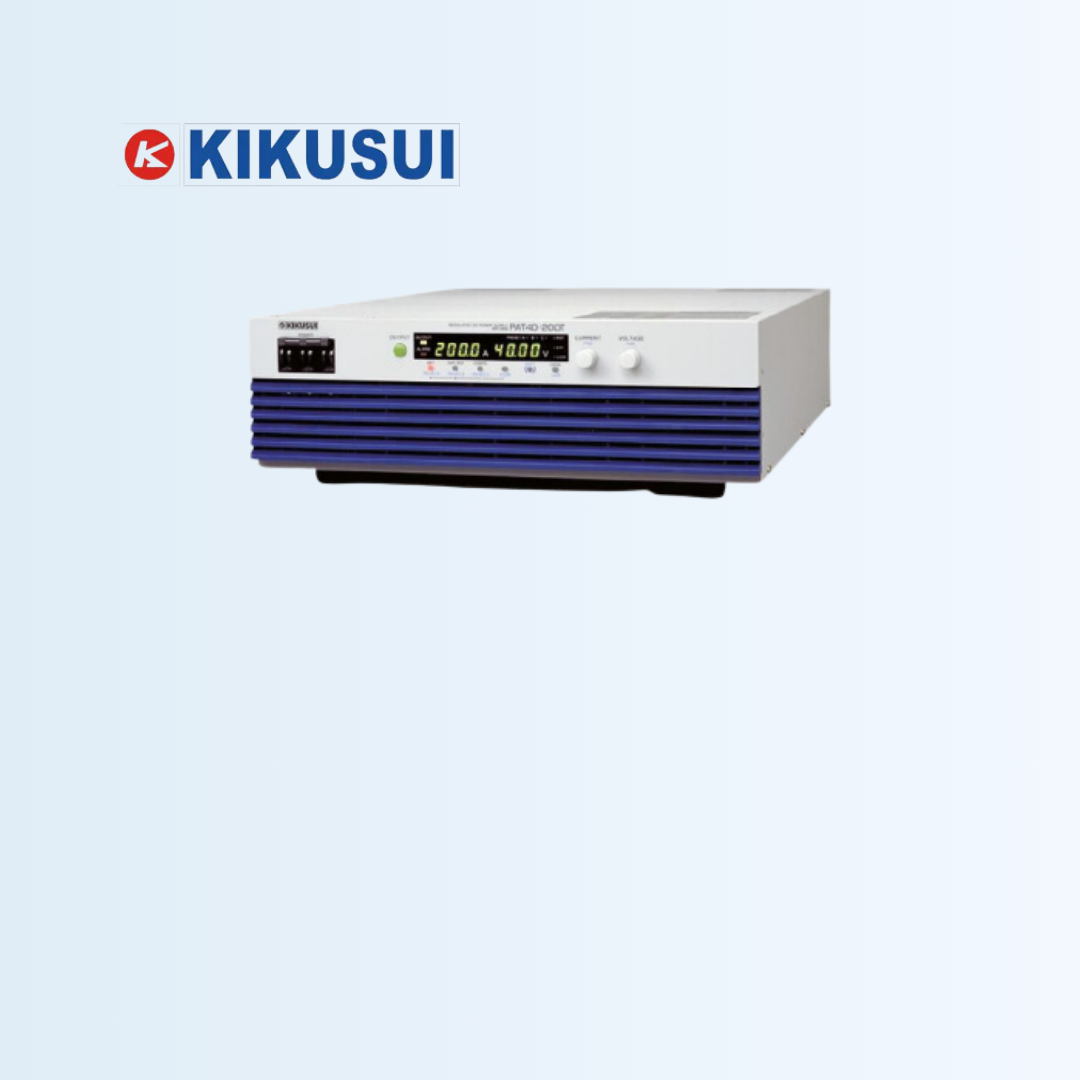

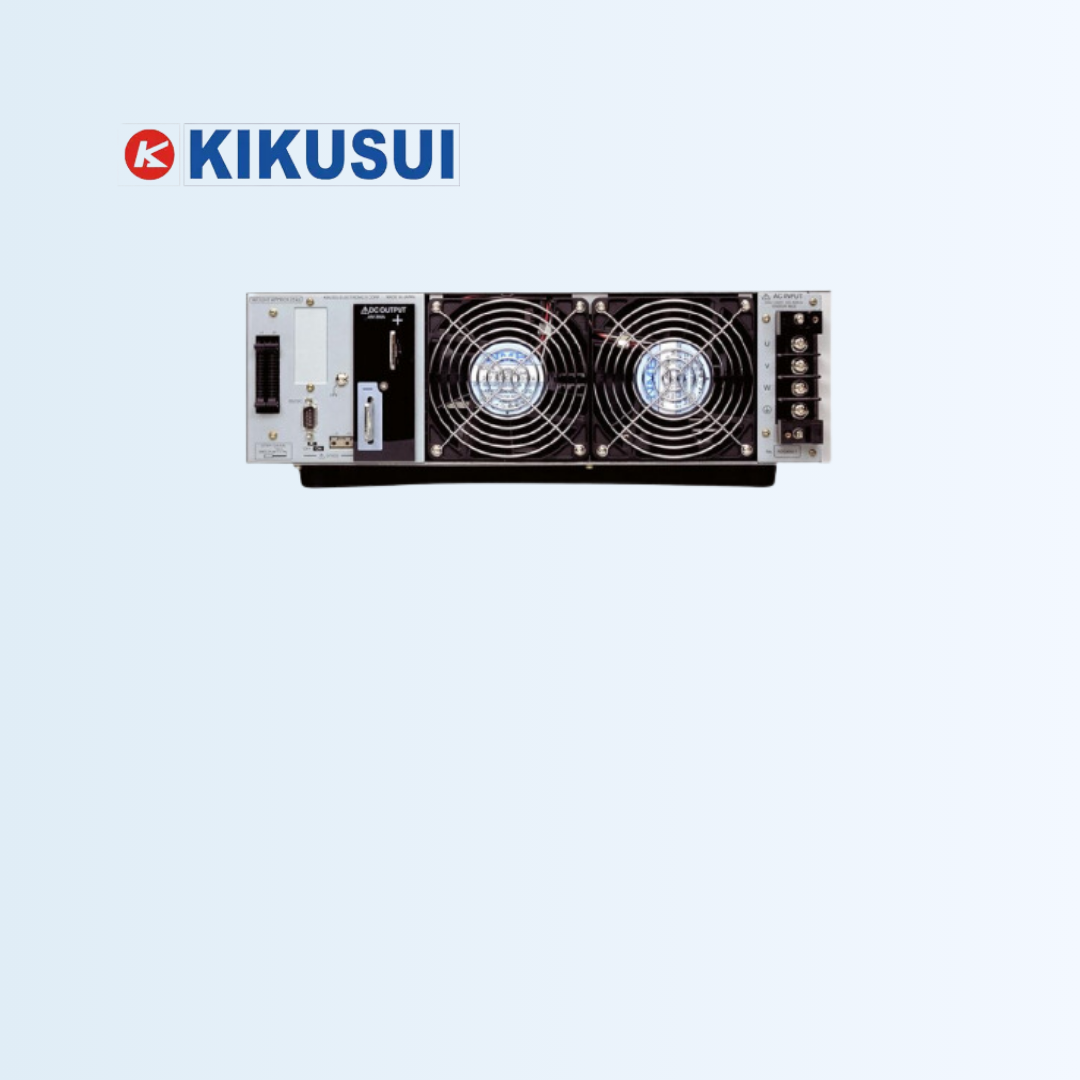

PAT-T Series
Smart Variable-switching DC Power Supply (Switching system, CV/CC) 32 Models
The PAT-T Series is a CV/CC auto-shifting switching DC power supply featuring excellent efficiency and low noise due to a soft switching system design. The PAT-T series is equipped with state-of-the-art high-density packaging technology allowing for extremely high power capacity with a vastly reduce chassis size and weight.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| PAT20-200T | 4kW, 0 to 20V/0 to 200A |
| PAT20-400T | 8kW, 0 to 20V/0 to 400A |
| PAT20-800TM | 16kW, 0 to 20V/0 to 800A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT20-800TMX | 16kW, 0 to 20V/0 to 800A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT20-1200TM | 24kW, 0 to 20V/0 to 1200A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT20-1200TMX | 24kW, 0 to 20V/0 to 1200A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT20-1600TM | 32kW, 0 to 20V/0 to 1600A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT20-1600TMX | 32kW, 0 to 20V/0 to 1600A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT20-2000TM | 40kW, 0 to 20V/0 to 2000A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT20-2000TMX | 40kW, 0 to 20V/0 to 2000A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT30-266T | 8kW, 0 to 30V/0 to 266A |
| PAT30-532TM | 16kW, 0 to 30V/0 to 532A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT30-532TMX | 16kW, 0 to 30V/0 to 532A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT30-798TM | 24kW, 0 to 30V/0 to 798A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT30-798TMX | 24kW, 0 to 30V/0 to 798A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT30-1064TM | 32kW, 0 to 30V/0 to 1064A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT30-1064TMX | 32kW, 0 to 30V/0 to 1064A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT30-1330TM | 40kW, 0 to 30V/0 to 1330A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts) |
| PAT30-1330TMX | 40kW, 0 to 30V/0 to 1330A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker |
| PAT40-100T | 4kW, 0 to 40V/0 to 100A |
