- Maximum voltage: 60.0000 V / Maximum current : 200.0000 A
- Capable of seamless charging/discharging (high-speed charging/discharging transfer control)
- Can accurately measure not only voltage and current but also integrated capacity and electric power
- Built-in 10,000-step pattern charge/discharge function
- Supports temperature measurement, enabling temperature monitoring during charging and discharging
- High speed sampling with maximum 1 ms can be realized
- The new 6V range allows for high-precision measurements.
- Safety features include overcharging protection based on voltage, electricity, and temperature.
- A seismic sensor detects tremors and vibrations and turns off the output to prevent battery damage.
- LAN included as standard

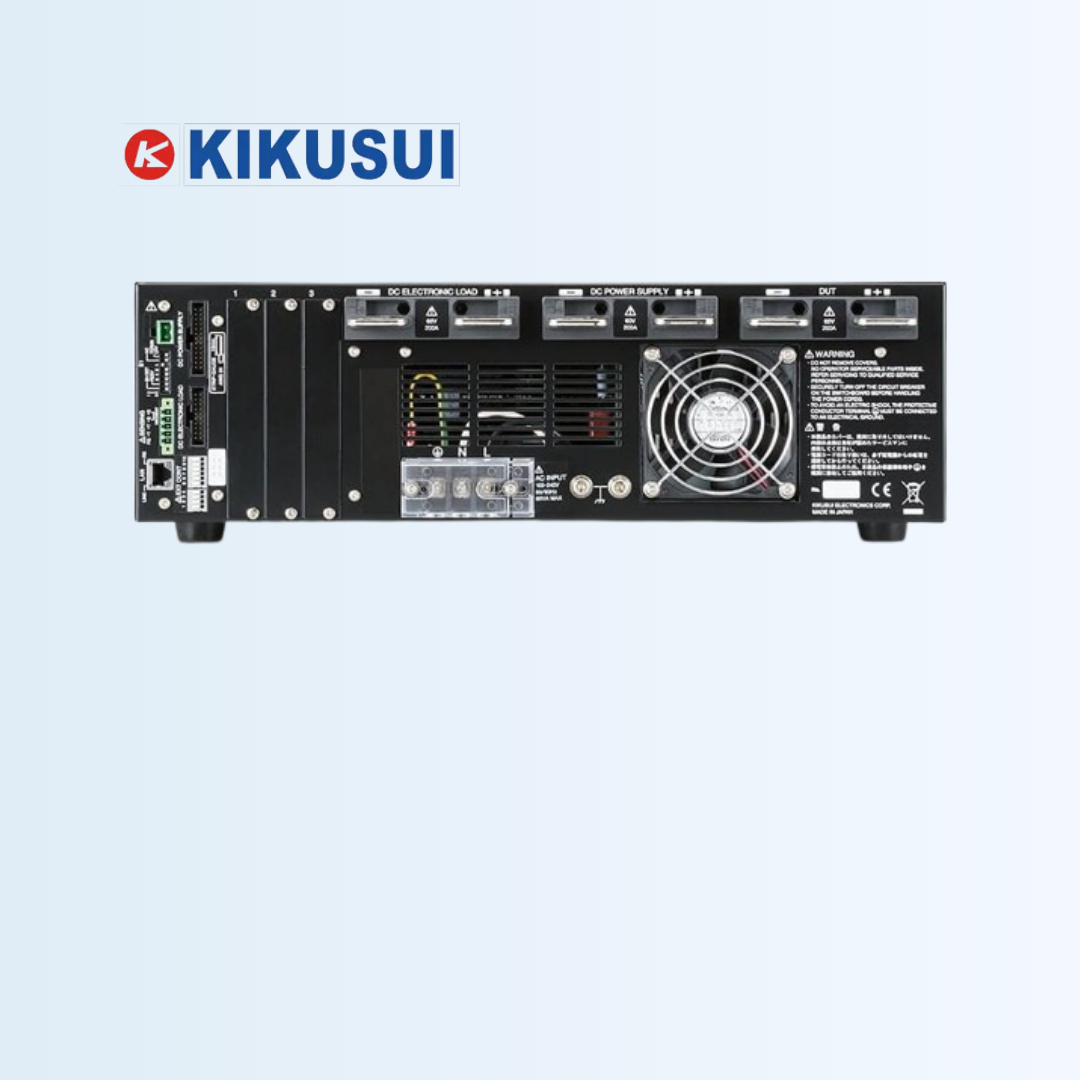

PFX2532
Charge/Discharge System Controller
PFX 2532 Series is a high performance Charge/Discharge system controller that takes measurements in combination with our DC power supply and electronic load in order to evaluate test sample (electric storage elements such as secondary batteries) characteristics. It is also capable to perform evaluation test with high-performance, large capacity and wide range of rating with the combination of DC power supply and electronic load. Execution of the test is conducted by the exclusive application software. The test corresponds to long time continuous test and synchronization test with temperature chambers with the multiplexed protection performance. In addition, easy data editing is also capable with fulfilling graphic performance.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| PFX2532 | The PFX2532 is a single-channel high-power battery tester supporting charging and discharging up to 200 A. Voltage range reaches 60 V, and maximum power goes up to 12 kW. It supports CC, CC-CV, CP, CP-CV, and Pattern modes with fast data sampling down to 1 ms. Accurate measurement of voltage, current, capacity, and energy is included, with LAN interface for PC-based operation. Suitable for large battery modules, EV battery packs, and energy storage evaluation. |
