- Built-in IoT & GPS for tracking and cloud management
- Remote control via web interface
- 5″ touch screen for intuitive operation
- Active V-Groove alignment with up to 520× magnification
- Fast splicing & heating with low loss
- Compact & portable for field use

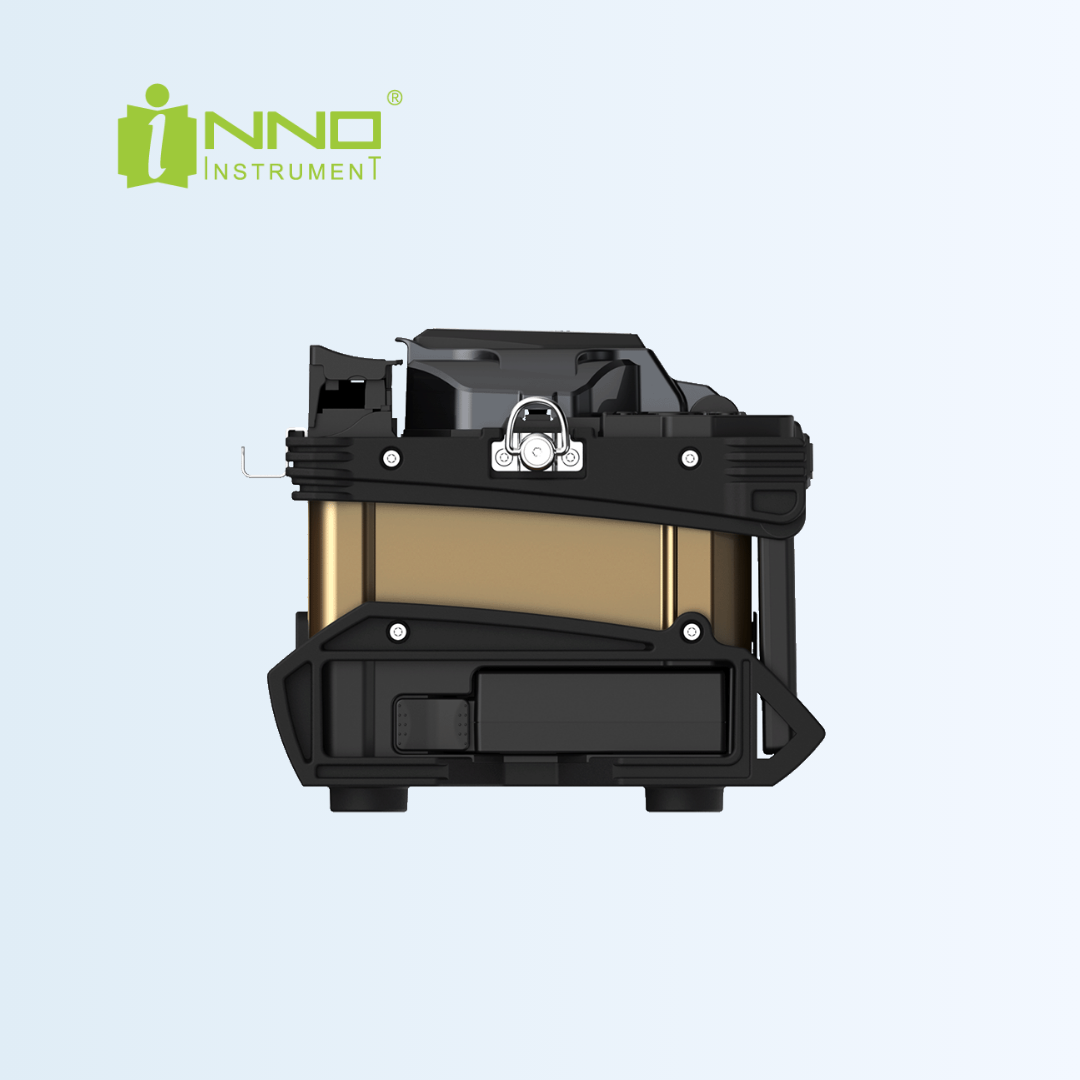

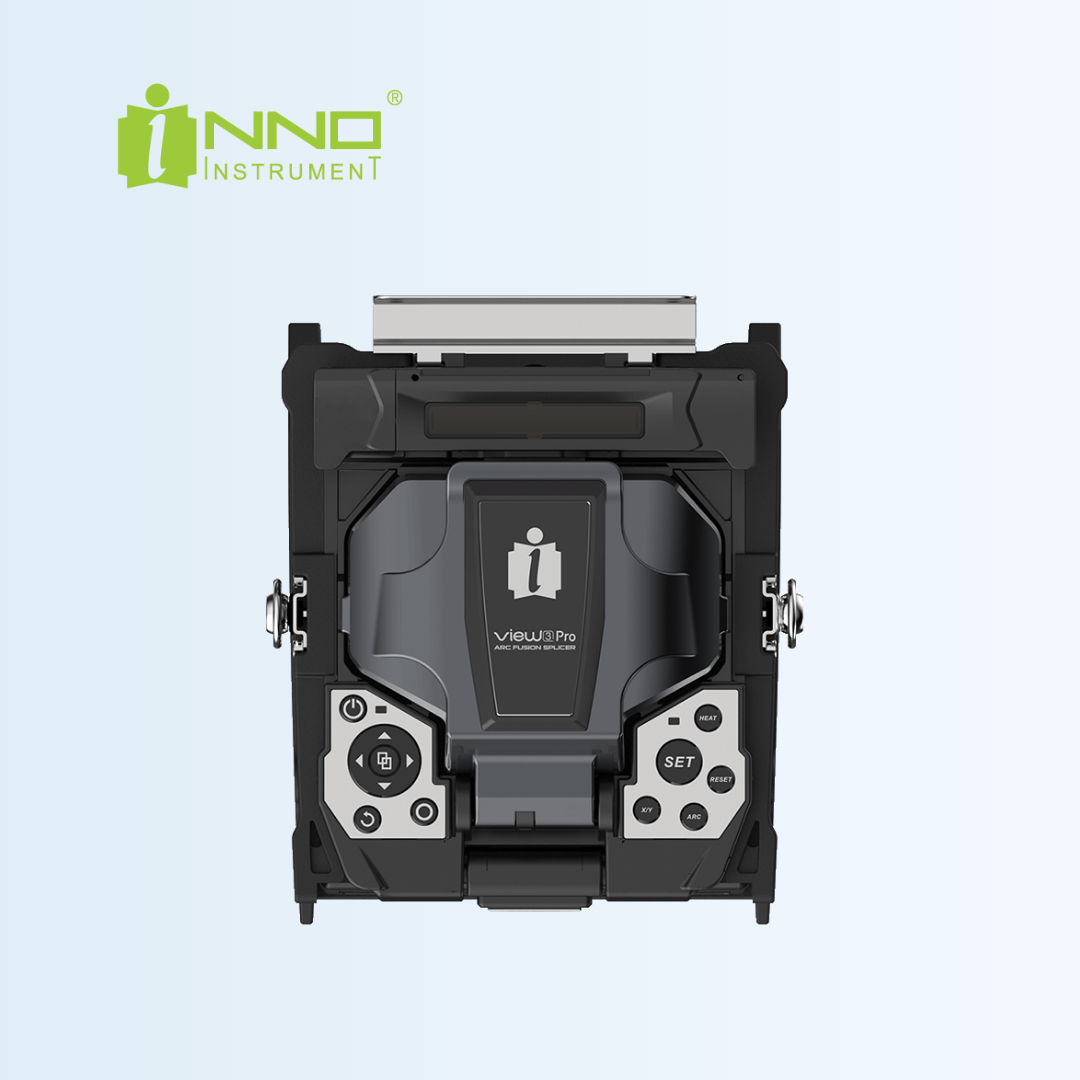

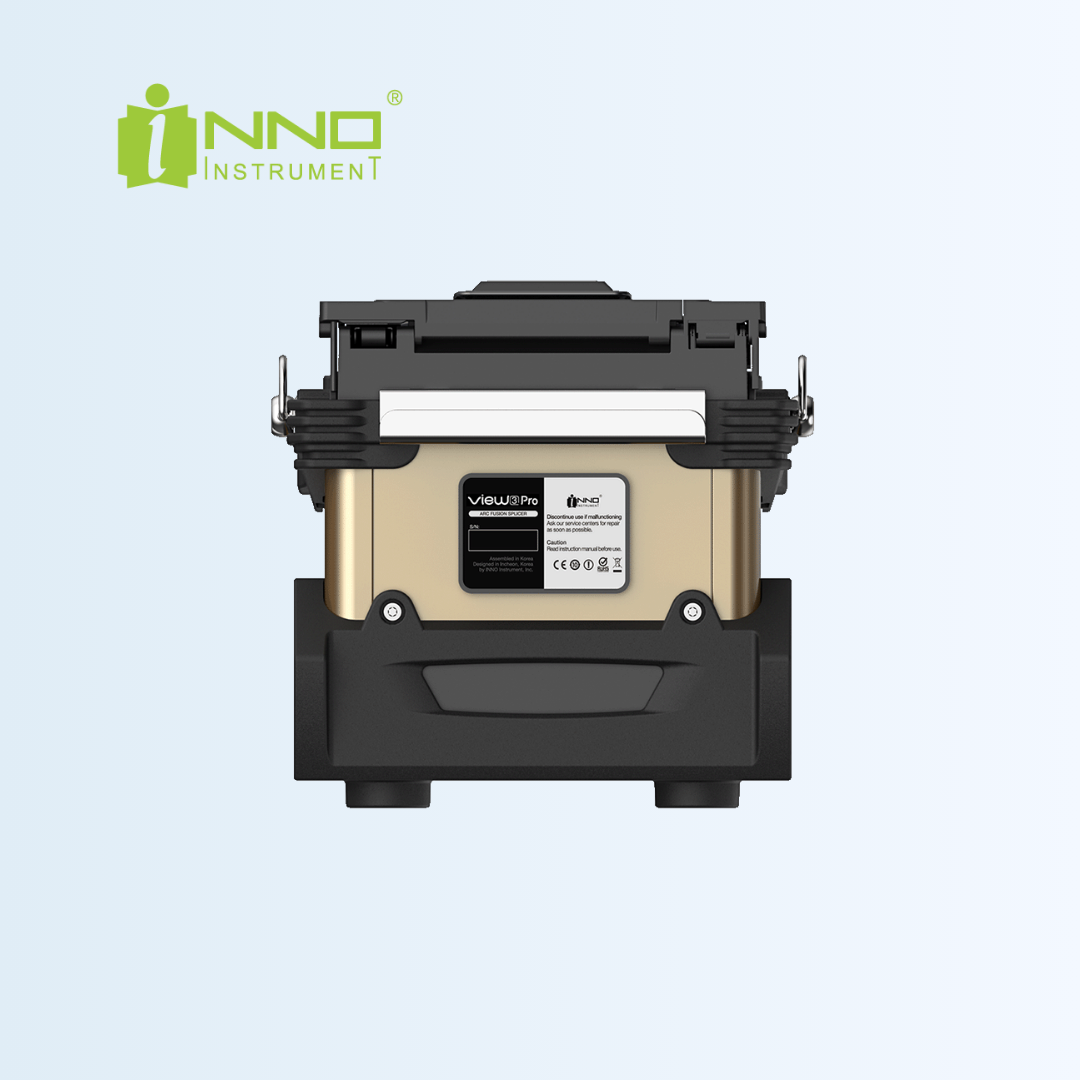

View3 Pro
Highly precise fusion splicer with advanced four-motor alignment for optimal performance
VIEW3 PRO is one of the most precise active cladding fusion splicer in the market with its advanced four motored alignment algorithm to ensure the ultimate work experience. VIEW3 PRO’s 5-inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working in the darkest environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Splicing Technolog | Active Clad Alignment |
| Splicing Time | 8s |
| Heating Time | 15s |
| Typical Loss | SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB |
| Size (HWD) | H: 151mm W: 149mm D: 177mm |
| Weight | 2.21kg (with battery) / 1.85kg (without battery) |
