- Frequency Range: 9 kHz to 300 MHz
- Suitable for CISPR, Mil-Std 461 & DO-160
- Individual calibration
- Three-year warranty
CLCE-332
Current Monitoring Probe
CLCE-332 RF Current Probe is a split-core current probe designed for conducted emission and immunity testing. It supports compliance measurements for CISPR 22, CISPR 32, DO-160, and MIL-STD-461, as well as applied current monitoring during conducted immunity tests. Featuring a rugged split-core ferrite design with a hinged enclosure, the probe allows easy placement around cables or wire bundles. The CLCE-332 is intended for use with 50 Ω measurement equipment, such as spectrum analyzers or EMI receivers, for accurate true RMS voltage measurements.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency Range | 9 kHz to 300 MHz |
| Window (Aperture) Inside Diameter | 1.26" (32 mm) |
| Outside Diameter | 2.83" (72 mm) |
| Height | 0.76" (19.3 mm) |
| Weight | 0.275 lbs. (0.125 kg) |
| Connector | Type-N (Female) |
| Transfer impedance (ZtΩ) | 5Ω |
| Transfer impedance (dBΩ) | -40 to 15 dBΩ (typical)* |
| Max Primary Current (DC-60 Hz) | 56 Amps |
| Max Primary Current (400 Hz) | 42 Amps |
| Max Primary Current (RF) | 3 Amps |
| Max. Core Temperature | 248℃F (120°C) |
| Pulse (8/20 µs) | 1300 Amps |

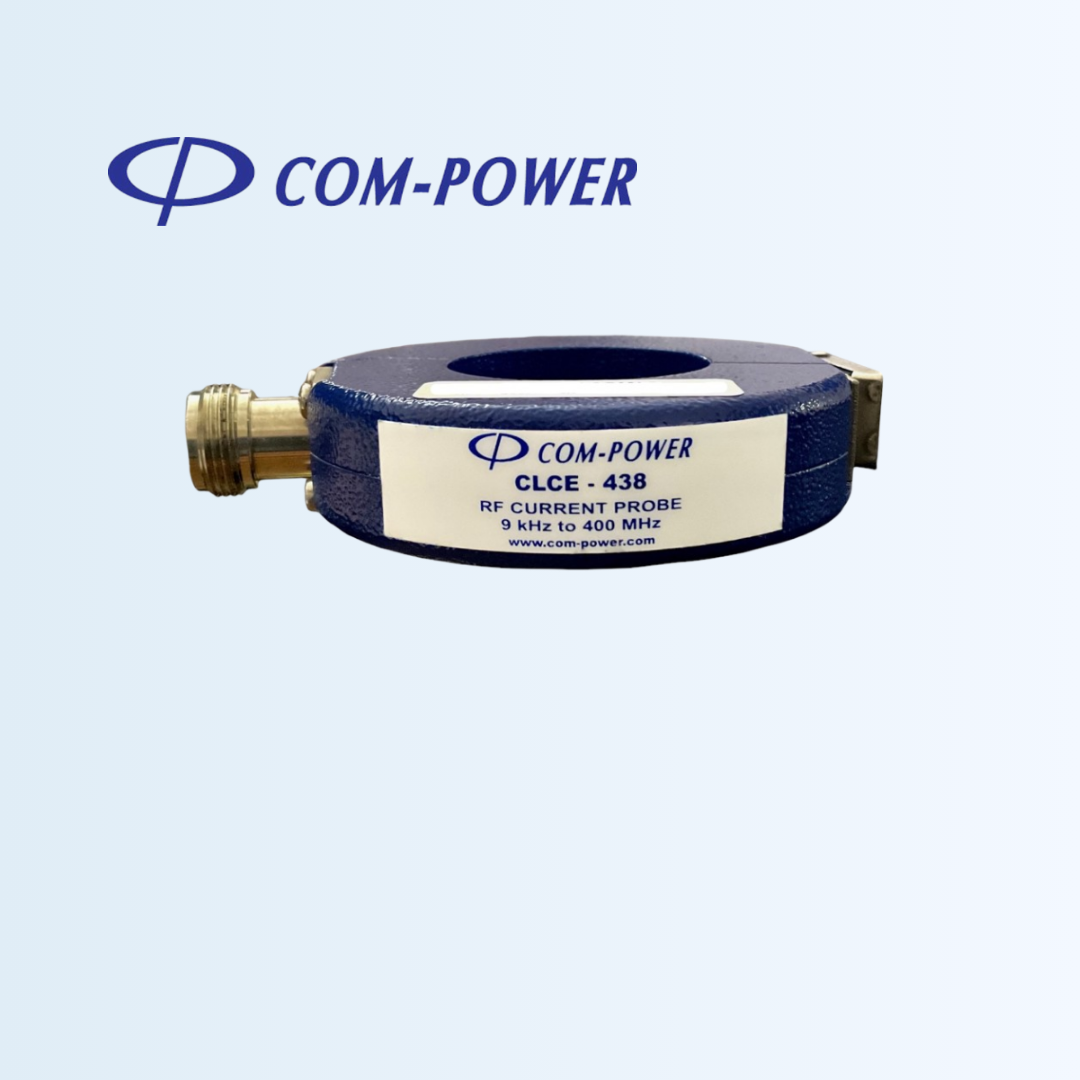

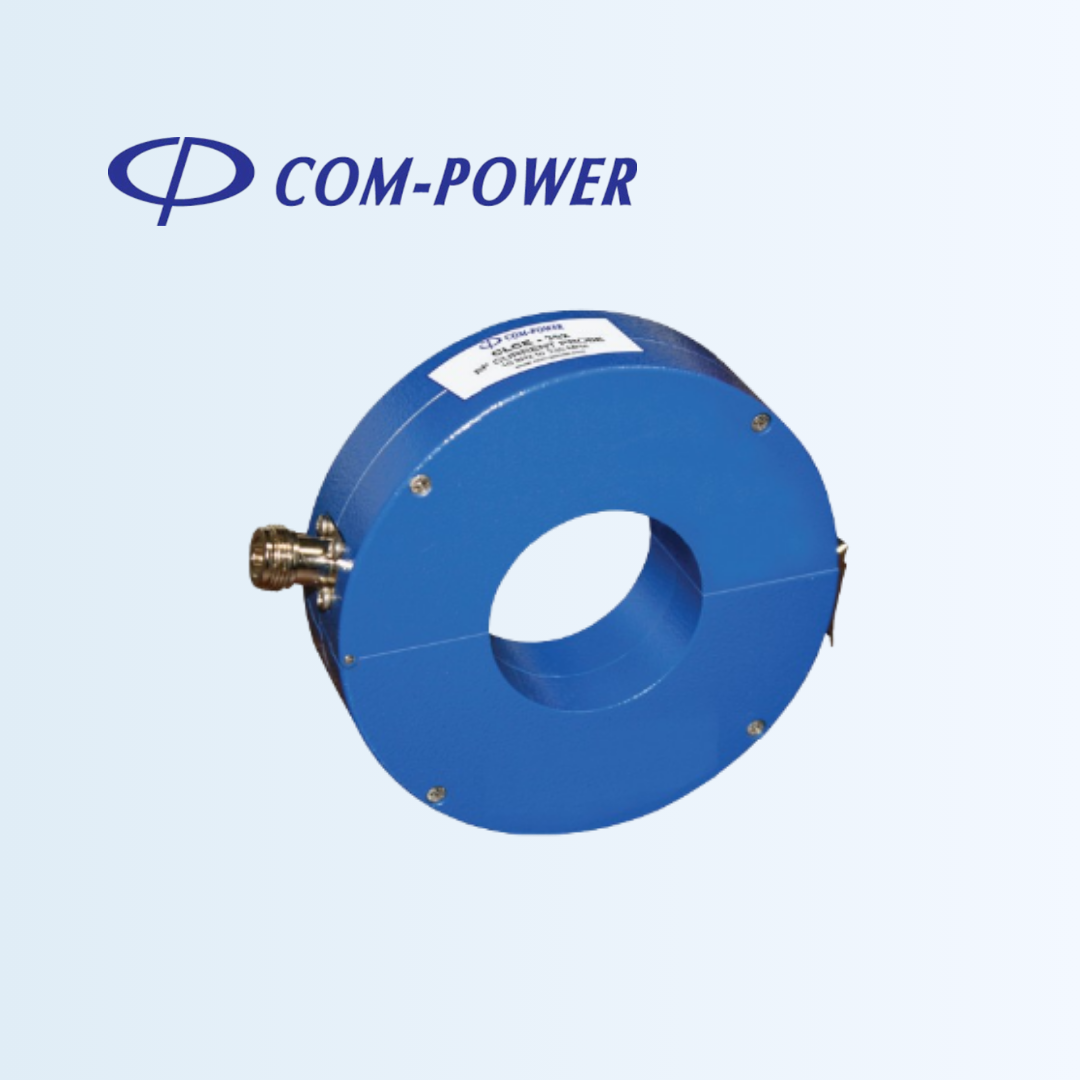

Other Product
